Product Details:
|
| Warranty: | Two Year For Airend. One Year For Rest Of Parts | Type: | PM+VSD |
|---|---|---|---|
| Power: | 7.5-250KW | Display: | SMART LCD |
| Energy Saving: | 20%-30% | Product Name: | PM Air Compressor |
| High Light: | 250KW PM Air Compressor,Low Noise PM Air Compressor,Low Noise 7.5KW Screw Compressor |
||

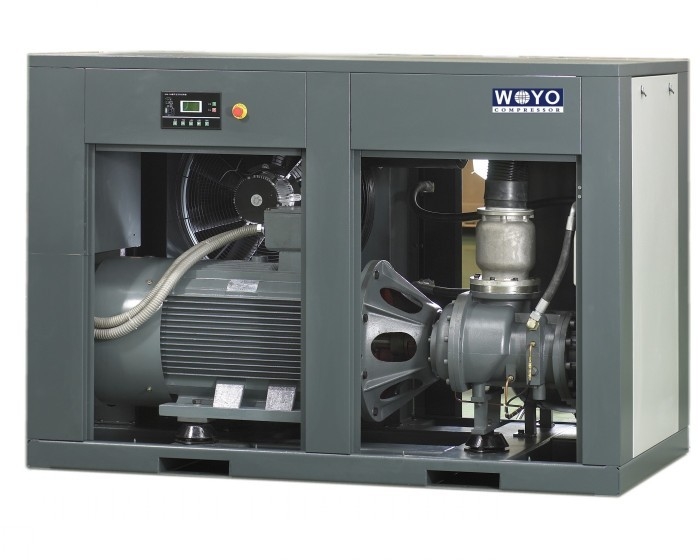

PM Screw Air Compressor, Permanent Magnet, Inverter, Low noise,Direct drive
1. The efficient permanent magnet motor and the Airend are perfectly matched. Through the advanced speed regulation and frequency conversion technology of the frequency converter, it can greatly reduce the use cost of customers and provide stable and reliable compressed air.
2. Permanent magnet frequency conversion model can adjust the running speed of air compressor according to the air consumption of the terminal, so that the power consumed by the air compressor is in linear proportion to the gas produced, which has achieved the purpose of stabilizing the pressure and saving energy
| Model | Power(KW) | Pressure(MPa) | Capacity(m3/min) | Pipe Diameter | Weight (kg) | Dimension(mm) |
| HV10 | 7.5 | 0.8-1.3 | 0.7-1.1 | G1/2 | 180 | 960*650*850 |
| HV15 | 11 | 0.8-1.3 | 1.0-1.7 | G3/4 | 300 | 1000*750*1000 |
| HV20 | 15 | 0.8-1.3 | 1.6-2.3 | G3/4 | 320 | 1000*750*1000 |
| HV30 | 22 | 0.8-1.3 | 2.7-3.4 | G1 | 420 | 1070*850*1260 |
| HV40 | 30 | 0.8-1.3 | 3.1-5.0 | G1 | 450 | 1070*850*1260 |
| HV50 | 37 | 0.8-1.3 | 4.7-6.4 | G1 1/2 | 600 | 1200*1000*1390 |
| HV60 | 45 | 0.8-1.3 | 5.7-7.2 | G1 1/2 | 700 | 1200*1000*1390 |
| HV75 | 55 | 0.8-1.3 | 6.7-9.4 | G2 | 920 | 1700*1200*1550 |
| HV100 | 75 | 0.8-1.3 | 9.1-12.2 | G2 | 950 | 1700*1200*1550 |
| HV125 | 90 | 0.8-1.3 | 11.4-15.2 | G2 | 1350 | 2100*1300*1650 |
| HV150 | 110 | 0.8-1.3 | 14.5-19.9 | DN80 | 2650 | 2500*1650*1900 |
| HV180 | 132 | 0.8-1.3 | 16-23 | DN80 | 2850 | 2500*1650*1900 |
| HV220 | 160 | 0.8-1.3 | 21-27 | DN80 | 4100 | 3000*1900*1950 |
| HV250 | 185 | 0.8-1.3 | 23-30 | DN80 | 4300 | 3000*1900*1950 |
| HV270 | 200 | 0.8-1.3 | 25.5-32.5 | DN100 | 5300 | 3600*2200*2200 |
| HV300 | 220 | 0.8-1.3 | 28.8-38 | DN100 | 5500 | 3600*2200*2200 |
| HV340 | 250 | 0.8-1.3 | 31.5-43 | DN100 | 5800 | 3600*2200*2200 |
