Product Details:
|
| Warranty: | 2 Year For Compact Unit Airend, 1 Year For Spare Parts | Power: | 7.5-10hp |
|---|---|---|---|
| Type: | Screw | Voltage: | 208-220/460V, 60HZ & 380V 50HZ |
| Advantage: | Low Noise And Easy For Maintenance | Airend: | Compact Unit |
| High Light: | 60hz Belt Drive Screw Air Compressor,220V 460V Belt Driven Compressor,460V 10 hp screw air compressor |
||

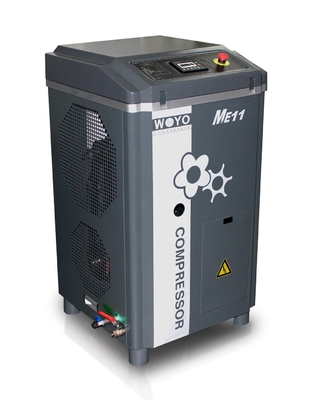

Screw Air Compressor Belt Drive Compact Unit Airend 10HP 208-220/460 60hz
Description
The integrated screw air compressor integrates screw air compressors, freeze dryers, precision filters, air storage tanks and other components. The user is convenient to install, simple to use, and flexible to move. After the air is integrated with the system, the air quality is significantly optimized, which can meet the process needs of various enterprises. Beautiful appearance, reliable performance, superior economy, is one of the screw series air compressor products exported by our company.
1. According to WOYO German Company rotor profile levels of energy efficiency standrads for new optimization,also can guarantee good performance even in extreme conditions.
2. German precise grinding machine are processing and checking.
3. Use SKF high quality thrust and radial bearing.
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
ME7.5 |
5.5 |
0.7-1.0 |
0.6-0.8 |
G1/2 |
120 |
630*630*1130 |
|
ME10 |
7.5 |
0.7-1.0 |
0.8-1.1 |
G1/2 |
130 |
630*630*1130 |
Feature
1. Efficient and stable air pressure.
2. Noise as low as 65 decibels.
3. Low energy consumption, sufficient kinetic energy.
4. Intelligent microcomputer control system.
5. Safe and reliable.
Application
Machinery, metallurgy, electronic power, medicine, packaging, chemical, food, mining, textile, transportation and many other
industrial fields
Company Information
Founded in 1996, WOYO is a High-tech enterprise with patent skills focuses on screw compressor industry. WOYO together with Wolkair Germany and GASCOT Germany formed a Joint Venture----WOYO Superdo in 2003. WOYO Superdo Achieved excellent results in research&develop of core components, Modular designing, Quality Management, Precision Machining and Large-scale production.
There is a workshop of 20000 ㎡ with KAPP and SU rotor grinding machine, Japanese horizontal machining center and coordinate measuring machine in our factory. Over 120 Employees work for us.
Our vision is creating value. Our skills and products are approved by more and more customers in light industry because we provide not only the compressors but also made-to-measure compressed air solutions to reduce the cost for customers.
We will supply more reliable and more economical compressor system and Service to our customer in global.
