Product Details:
|
| Warranty: | 2 Year For Compact Unit Airend, 1 Year For Spare Parts | Power: | 15hp |
|---|---|---|---|
| Type: | Screw | Voltage: | 208-220/460V, 60HZ & 380V 50HZ |
| Advantage: | Low Noise And Easy For Maintenance | Airend: | Compact Unit |
| High Light: | 15hp Belt Drive Screw Air Compressor,Belt Drive Screw Air Compressor 380V,15hp Oil Cooled Air Compressor |
||

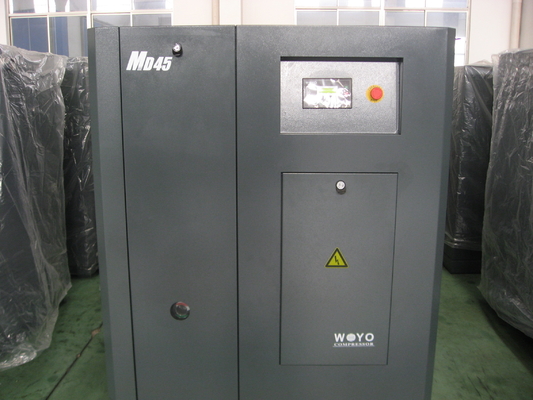

Screw Air Compressor, Belt Drive, Compact Unit Airend, 15hp 208-220/460 60hz
1. According to WOYO German Company rotor profile levels of energy efficiency standrads for new optimization,also can guarantee good performance even in extreme conditions.
2. German precise grinding machine are processing and checking.
3. Use SKF high quality thrust and radial bearing.
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
WB15 |
11 |
0.7-1.0 |
1.29-1.52 |
G1/2 |
120 |
1060*750*910 |
|
|
|
|
|
|
|
|
Advantages of WOYO Screw Air Compressor
1. The latest Sino-German technical cooperation, high reliability.
2. Oil-cooled permanent magnet motor.
3. IP55 protection grade and heavy-duty air filter, suitable for dusty environment.
4. The efficiency of IE4 efficiency motor.
5. Most energy-saving modes are only effective when loading.
6. Wide frequency range 25%-100%.
7. High-quality magnetic materials can withstand temperatures above 180°C.
8. Direct taper connection, no transmission power loss, easy maintenance.
9. The touch screen PLC has a preset running schedule and smarter control.
10. Both the main motor and the fan motor are controlled by the frequency converter, which makes the control more precise.
11. Easy to install and maintain.
12. Excellent energy saving effect, energy saving up to 30-40%.
