Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Power: | 270hp |
|---|---|---|---|
| Type: | Screw | Motor: | PM |
| Frequency Transformer: | Inovance | Air Capacity: | 25.5-32.5M3/min |
| Working Pressure: | 0.8-1.3Mpa | ||
| High Light: | 200KW Permanent Magnet Screw Compressor,1.3Mpa PM Permanent Magnet Screw Compressor,200KW Screw Air Compressor |
||

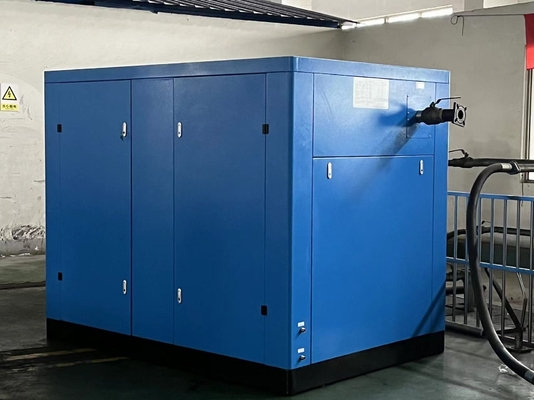

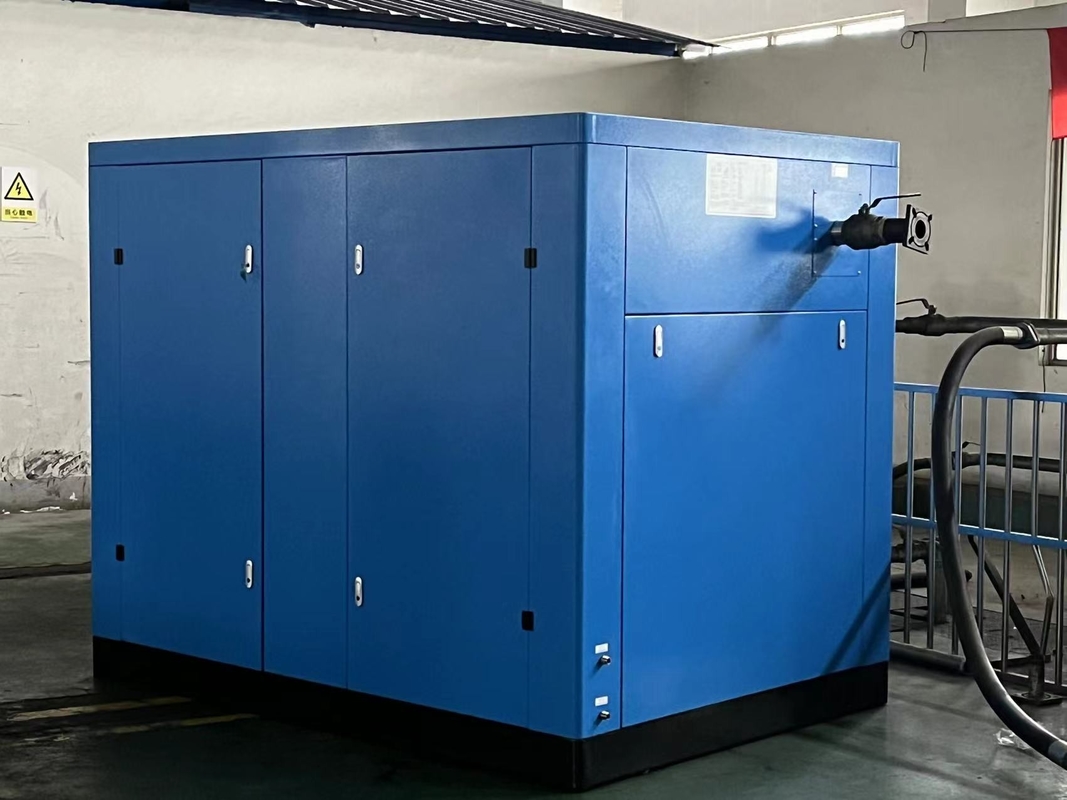

PM Screw Air Compressor 270hp Direct Drive
Screw Air Compressor Components
1. Motor
Three phase direct driven copper motor, high efficiency with energy saving and low noise
2. Air Filter
High quality, stable
3. Contributor Box
stable power supply with worldwide high quality material
4. Oil Air Separator
high quality oil tank with resistant to high pressure and high temperature insulation
5. Cooling Fan
Screw Air Compressor Features
1. The efficient permanent magnet motor and the Airend are perfectly matched. Through the advanced speed regulation and frequency conversion technology of the frequency converter, it can greatly reduce the use cost of customers and provide stable and reliable compressed air.
2. Permanent magnet frequency conversion model can adjust the running speed of air compressor according to the air consumption of the terminal, so that the power consumed by the air compressor is in linear proportion to the gas produced, which has achieved the purpose of stabilizing the pressure and saving energy
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
HV10 |
7.5 |
0.8-1.3 |
0.7-1.1 |
G1/2 |
180 |
960*650*850 |
|
HV15 |
11 |
0.8-1.3 |
1.0-1.7 |
G3/4 |
300 |
1000*750*1000 |
|
HV20 |
15 |
0.8-1.3 |
1.6-2.3 |
G3/4 |
320 |
1000*750*1000 |
|
HV30 |
22 |
0.8-1.3 |
2.7-3.4 |
G1 |
420 |
1070*850*1260 |
|
HV40 |
30 |
0.8-1.3 |
3.1-5.0 |
G1 |
450 |
1070*850*1260 |
|
HV50 |
37 |
0.8-1.3 |
4.7-6.4 |
G1 1/2 |
600 |
1200*1000*1390 |
|
HV60 |
45 |
0.8-1.3 |
5.7-7.2 |
G1 1/2 |
700 |
1200*1000*1390 |
|
HV75 |
55 |
0.8-1.3 |
6.7-9.4 |
G2 |
920 |
1700*1200*1550 |
|
HV100 |
75 |
0.8-1.3 |
9.1-12.2 |
G2 |
950 |
1700*1200*1550 |
|
HV125 |
90 |
0.8-1.3 |
11.4-15.2 |
G2 |
1350 |
2100*1300*1650 |
|
HV150 |
110 |
0.8-1.3 |
14.5-19.9 |
DN80 |
2650 |
2500*1650*1900 |
|
HV180 |
132 |
0.8-1.3 |
16-23 |
DN80 |
2850 |
2500*1650*1900 |
|
HV220 |
160 |
0.8-1.3 |
21-27 |
DN80 |
4100 |
3000*1900*1950 |
|
HV250 |
185 |
0.8-1.3 |
23-30 |
DN80 |
4300 |
3000*1900*1950 |
|
HV270 |
200 |
0.8-1.3 |
25.5-32.5 |
DN100 |
5300 |
3600*2200*2200 |
|
HV300 |
220 |
0.8-1.3 |
28.8-38 |
DN100 |
5500 |
3600*2200*2200 |
|
HV340 |
250 |
0.8-1.3 |
31.5-43 |
DN100 |
5800 |
3600*2200*2200 |
Screw Air Compressor Applications
The application range of compresor de tornillo is very wide: heavy,light industry, mining, hydropower, seaport, engineering construction, oil and gas fields, railways, transportation, shipbuilding, energy, military industry and other industries.
Company Information
Founded in 1996, WOYO is a High-tech enterprise with patent skills focuses on screw compressor industry. WOYO together with Wolkair Germany and GASCOT Germany formed a Joint Venture----WOYO Superdo in 2003. WOYO Superdo Achieved excellent results in research&develop of core components, Modular designing, Quality Management, Precision Machining and Large-scale production.
There is a workshop of 20000 ㎡ with KAPP and SU rotor grinding machine, Japanese horizontal machining center and coordinate measuring machine in our factory. Over 120 Employees work for us.
Our vision is creating value. Our skills and products are approved by more and more customers in light industry because we provide not only the compressors but also made-to-measure compressed air solutions to reduce the cost for customers.
We will supply more reliable and more economical compressor system and Service to our customer in global.
