Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Airend Type: | Two Stages |
|---|---|---|---|
| Motor: | PM | Air Capacity: | 4.3-2.7M3/min |
| Working Pressure: | 0.7-1.3 Mpa | Advantages: | Low Speed And High Capacity With Low-Energy |
| High Light: | 30HP Two Stage Permanent Magnet,Permanent Magnet Air Compressor 2.7M3/Min,PM 30 hp screw compressor |
||

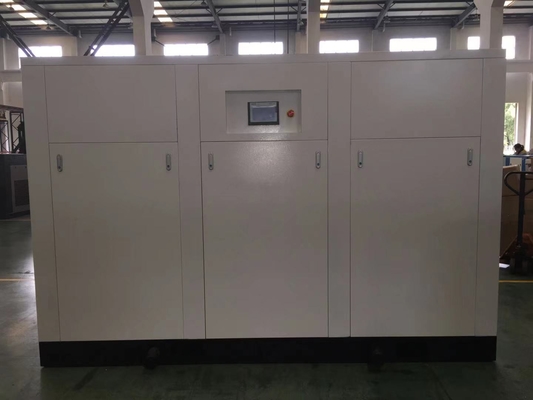

Low Speed Two Stages PM Compressor 30HP 4.3-2.7M3/Min
The two-stage permanent magnet variable frequency air compressor is a compression process, entering the first stage of compression, and then entering the second stage of compression. At the same power, the gas output of the first stage of compression is up to 15%, and the energy saving effect can reach 20-50%. What are the advantages of two-stage permanent magnet frequency conversion air compressor?
1. The compression ratio of each compression stage is precisely designed to reduce the load on bearings and gears and extend the service life of the main Airend.
2. The main Airend is designed with large rotor and low speed, and contains two independent compression units.
3. The first stage compression rotor and the second stage compression rotor are combined in a shell, respectively driven directly by helical gear, so that each stage rotor can obtain better linear speed and higher compression transmission efficiency.
4. The rotor adopts the newly designed rotor ultraviolet current profile. After more than 20 finishing processes, ensure the rotor profile precision, reliability and effectiveness.
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
HVV30 |
22 |
0.7-1.3 |
4.3-2.7 |
G1-1/2 |
650 |
1500*1000*1350 |
|
HVV40 |
30 |
0.7-1.3 |
6.0-3.9 |
G1-1/2 |
700 |
1500*1000*1350 |
|
HVV50 |
37 |
0.7-1.3 |
7.1-5.4 |
G1-1/2 |
750 |
1500*1000*1350 |
|
HVV60 |
45 |
0.7-1.3 |
10.0-6.8 |
G2 |
1250 |
2100*1300*1650 |
|
HVV75 |
55 |
0.7-1.3 |
13.0-7.5 |
G2 |
1300 |
2100*1300*1650 |
|
HVV100 |
75 |
0.7-1.3 |
15.5-10.2 |
G2 |
1350 |
2100*1300*1650 |
|
HVV125 |
90 |
0.7-1.3 |
19.8-14.0 |
DN80 |
2700 |
2500*1650*1900 |
|
HVV150 |
110 |
0.7-1.3 |
24.0-16.0 |
DN80 |
2800 |
2500*1650*1900 |
|
HVV180 |
132 |
0.7-1.3 |
27.5-19.0 |
DN80 |
3000 |
2500*1650*1900 |
|
HVV220 |
160 |
0.7-1.3 |
33.0-22.5 |
DN80 |
4300 |
3000*1900*1950 |
|
HVV250 |
185 |
0.7-1.3 |
39.0-27.5 |
DN80 |
4400 |
3000*1900*1950 |
|
HVV270 |
200 |
0.7-1.3 |
43.5-31.5 |
DN100 |
5000 |
3600*2200*2200 |
|
HVV300 |
220 |
0.7-1.3 |
51.5-35.5 |
DN100 |
5500 |
3600*2200*2200 |
|
HVV340 |
250 |
0.7-1.3 |
54.0-38.0 |
DN125 |
6000 |
3600*2200*2200 |
|
HVV380 |
280 |
0.7-1.3 |
60.0-43.0 |
DN125 |
6800 |
4000*2300*2300 |
|
HVV420 |
315 |
0.7-1.3 |
65.0-50.5 |
DN125 |
7000 |
4000*2300*2300 |
|
HVV480 |
355 |
0.7-1.3 |
75.0-55.0 |
DN150 |
8500 |
4200*2200*2350 |
|
HVV540 |
400 |
0.7-1.3 |
84.0-61.0 |
DN150 |
9000 |
4200*2200*2350 |
Company Service
1. Our Advantages Service:
We have own developing and designing team, which ensure our own technological and innoative products for customers.
For any customers who send us the samples of rotors or airend, we will design and develop better ones based on the samples.
We are manufacturer, factory, so we have the ability of mass production.
2. Technical Support:
Most of our WOYO products adopt German advanced technilogy, and the producing machine are all equipped with German and Japan.
3. After Sale Service:
Our working team will always reply you if you need any technical support and help, we can use video, whatsapp and other commication tools to help you solve the problems.
