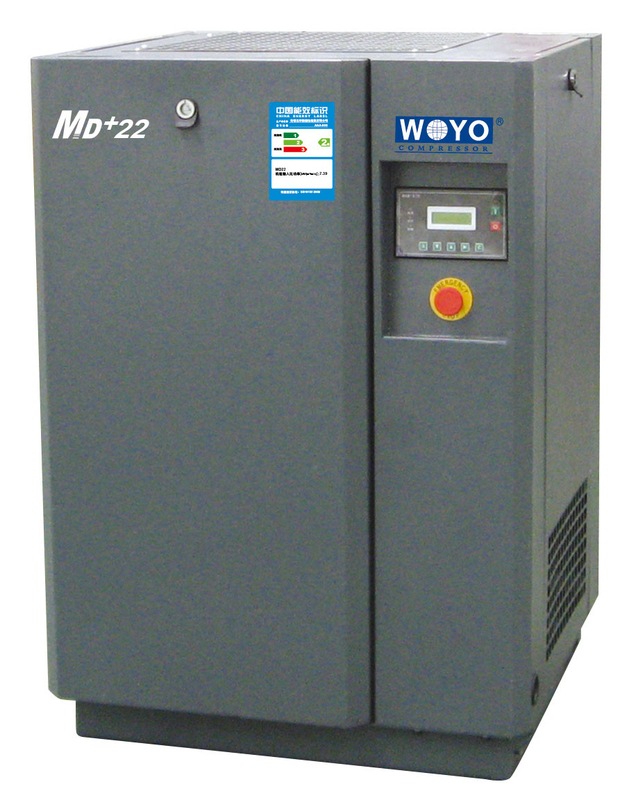

380V 50HZ Rotary Air Screw Compressor

Certification
China Wuxi WOYO Superdo Compressor Co.,Ltd certification
China Wuxi WOYO Superdo Compressor Co.,Ltd certification
I'm Online Chat Now

380V 50HZ Rotary Air Screw Compressor

380V 50HZ Rotary Air Screw Compressor
380V 50HZ Rotary Air Screw Compressor

Large Image :  380V 50HZ Rotary Air Screw Compressor

Product Details:
Place of Origin: CHINA
Brand Name: WOYO
Certification: CE,ISO
Model Number: HSD
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: To be confirmed
Packaging Details: PLYWOOD CASE
Delivery Time: 10-30 days
Payment Terms: T/T
Supply Ability: 100 unit/Month

380V 50HZ Rotary Air Screw Compressor

Description
Warranty: 2 Year For Airend, 1 Year For Spare Parts Power: 7.5hp
Working Pressure: 0.7-1.3Mpa Air Capacity: 0.3-0.8M3/min
Voltage: 208-220/460V, 60HZ & 380V 50HZ Type: Screw
High Light:

380V 50HZ Rotary Air Screw Compressor

,

Rotary Air Screw Compressor 7.5hp

,

7.5hp 220V Air Compressor

Screw air compressor, Direct drive, 7.5hp, 380V50HZ, 220V60HZ



Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution.



1. High reliability, less parts, no wearing parts, so it is reliable operation, long life, the general screw airend design life of 30 years.

2. Convenient operation and maintenance, high degree of automation, operators do not need to go through a long period of professional training, to achieve unattended operation.

3. Good power balance, no unbalanced inertia force, the machine can work smoothly at high speed, to achieve no foundation operation.

4. Strong adaptability, with the characteristics of forced gas transmission, volume flow is almost not affected by exhaust pressure, in a wide range of working conditions can maintain high efficiency, in the compressor structure without any change, suitable for a variety of working conditions, so easy to finalize the batch production.


Model

Power(KW)

Pressure(MPa)

Capacity(m3/min)

Pipe Diameter

Weight (kg)

Dimension(mm)

HSD10

7.5

0.8-1.3

0.7-1.1

G1/2

180

960*650*850

HSD15

11

0.8-1.3

1.0-1.7

G3/4

300

1000*750*1000

HSD20

15

0.8-1.3

1.6-2.3

G3/4

320

1000*750*1000

HSD30

22

0.8-1.3

2.7-3.4

G1

420

1070*850*1260

HSD40

30

0.8-1.3

3.1-5.0

G1

450

1070*850*1260

HSD50

37

0.8-1.3

4.7-6.4

G1 1/2

600

1200*1000*1390

HSD60

45

0.8-1.3

5.7-7.2

G1 1/2

700

1200*1000*1390

HSD75

55

0.8-1.3

6.7-9.4

G2

920

1700*1200*1550

HSD100

75

0.8-1.3

9.1-12.2

G2

950

1700*1200*1550

HSD125

90

0.8-1.3

11.4-15.2

G2

1350

2100*1300*1650

HSD150

110

0.8-1.3

14.5-19.9

DN80

2650

2500*1650*1900

HSD180

132

0.8-1.3

16-23

DN80

2850

2500*1650*1900

HSD220

160

0.8-1.3

21-27

DN80

4100

3000*1900*1950

HSD250

185

0.8-1.3

23-30

DN80

4300

3000*1900*1950

HSD270

200

0.8-1.3

25.5-32.5

DN100

5300

3600*2200*2200

HSD300

220

0.8-1.3

28.8-38

DN100

5500

3600*2200*2200



FAQ



Q: Are you manufacturer?

WOYO: Yes,we are professional air compressor manufacturer over 40 years and our factory located in Wuxi.



Q: How long is your Screw Airend warranty?

WOYO: For 2 year.



Q: Do you provide After- sales service parts?

WOYO: Of course, We could provide easy- consumable spares.



Q: How long could your Screw Airend be used?

WOYO: Generally, more than 10 years.



Q: How about your price?

WOYO: Based on high quality, Our price is very competitive in this market all over the world.



Q: How about your customer service?

WOYO: For email, we could reply our customers' emails within 2 hours.



Q: How to get quicker quotation?

WOYO: When you send us inquiry, please confirm below information at the same time:

* Power

* Color

* Air Capacity



This information is helpful for us to check suitable equipment solution and quotation quickly.
