Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Power: | 15hp |
|---|---|---|---|
| Working Pressure: | 0.7-1.3Mpa | Air Capacity: | 1.6-2.3M3/min |
| Voltage: | 208-220/460V, 60HZ & 380V 50HZ | Type: | Screw |
| High Light: | 2.3M3/min 15 hp rotary screw compressor,460V 15 hp rotary screw compressor,2.3M3/min 460V Air Compressor |
||

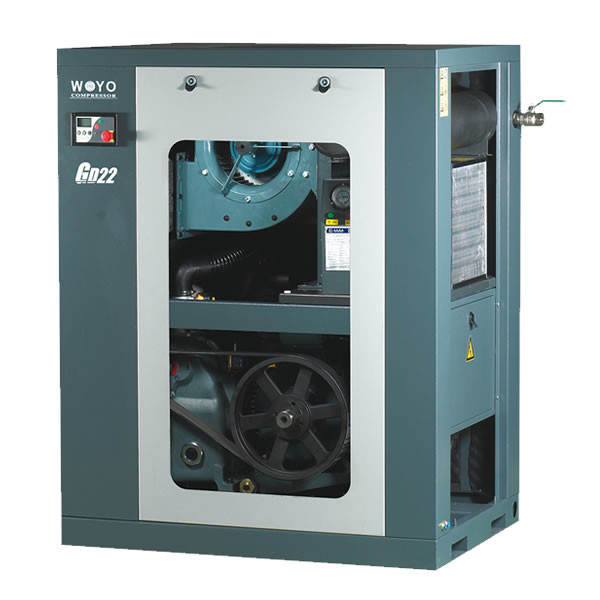

Screw Air Compressor, Direct Drive, 15hp, 380V50HZ, 220V60HZ
1. Professional design by our engineers originally from WOYO
2. Better stability and reliability with higher efficiency
3. High reliability, less parts, no wearing parts, so it is reliable operation, long life, the general screw airend design life of 30 years.
4. Convenient operation and maintenance, high degree of automation, operators do not need to go through a long period of professional training, to achieve unattended operation.
5. Good power balance, no unbalanced inertia force, the machine can work smoothly at high speed, to achieve no foundation operation.
6. Strong adaptability, with the characteristics of forced gas transmission, volume flow is almost not affected by exhaust pressure, in a wide range of working conditions can maintain high efficiency, in the compressor structure without any change, suitable for a variety of working conditions, so easy to finalize the batch production.
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
HSD10 |
7.5 |
0.8-1.3 |
0.7-1.1 |
G1/2 |
180 |
960*650*850 |
|
HSD15 |
11 |
0.8-1.3 |
1.0-1.7 |
G3/4 |
300 |
1000*750*1000 |
|
HSD20 |
15 |
0.8-1.3 |
1.6-2.3 |
G3/4 |
320 |
1000*750*1000 |
|
HSD30 |
22 |
0.8-1.3 |
2.7-3.4 |
G1 |
420 |
1070*850*1260 |
|
HSD40 |
30 |
0.8-1.3 |
3.1-5.0 |
G1 |
450 |
1070*850*1260 |
|
HSD50 |
37 |
0.8-1.3 |
4.7-6.4 |
G1 1/2 |
600 |
1200*1000*1390 |
|
HSD60 |
45 |
0.8-1.3 |
5.7-7.2 |
G1 1/2 |
700 |
1200*1000*1390 |
|
HSD75 |
55 |
0.8-1.3 |
6.7-9.4 |
G2 |
920 |
1700*1200*1550 |
|
HSD100 |
75 |
0.8-1.3 |
9.1-12.2 |
G2 |
950 |
1700*1200*1550 |
|
HSD125 |
90 |
0.8-1.3 |
11.4-15.2 |
G2 |
1350 |
2100*1300*1650 |
|
HSD150 |
110 |
0.8-1.3 |
14.5-19.9 |
DN80 |
2650 |
2500*1650*1900 |
|
HSD180 |
132 |
0.8-1.3 |
16-23 |
DN80 |
2850 |
2500*1650*1900 |
|
HSD220 |
160 |
0.8-1.3 |
21-27 |
DN80 |
4100 |
3000*1900*1950 |
|
HSD250 |
185 |
0.8-1.3 |
23-30 |
DN80 |
4300 |
3000*1900*1950 |
|
HSD270 |
200 |
0.8-1.3 |
25.5-32.5 |
DN100 |
5300 |
3600*2200*2200 |
|
HSD300 |
220 |
0.8-1.3 |
28.8-38 |
DN100 |
5500 |
3600*2200*2200 |
1. Our Advantages Service:
We have own developing and designing team, which ensure our own technological and innoative products for customers.
For any customers who send us the samples of rotors or airend, we will design and develop better ones based on the samples.
We are manufacturer, factory, so we have the ability of mass production.
2. Technical Support:
Most of our WOYO products adopt German advanced technilogy, and the producing machine are all equipped with German and Japan.
3. After Sale Service:
Our working team will always reply you if you need any technical support and help, we can use video, whatsapp and other commication tools to help you solve the problems.
Contact Person: Jerry
Tel: 15021191772
