Product Details:
|
| Warranty: | 12-18 Month | Power: | 10-60HP |
|---|---|---|---|
| Type: | Screw | Advantage: | Low Noise, Easy For Maintain |
| Color: | Gray Or Yellow | Characteristic: | Mechanical Seal For GAS Applications |
| High Light: | Mechanical Seal Compact Unit Airend,10hp Screw Air Compressor Air End,60hp Compact screw compressor air end |
||

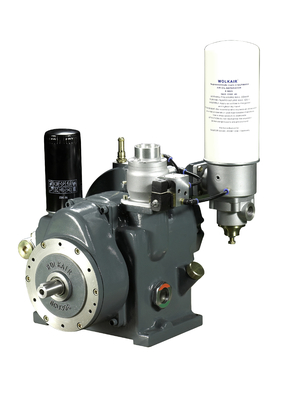

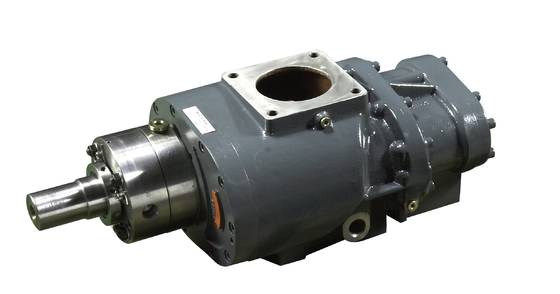

Compact Screw Airend With Mechanical Seal For GAS 10-60hp
Compact Screw Airend Descriptions
Compact Screw Airend has been optimised with regard to safety, compactness, simplified logistics and reduced costs. It has some features, such as lower noise, small volume, lightweight, simplified service snd maintenance.
Compact Screw Airend Parameters
| Type | Power Range(Hp) | Pressure(Bar) | Capacity(M3/min) | Speed Range(RPM) | Net Weight(KG) |
| GCU10 | From 7.5hp-10hp | 7-13 | 0.48-1.16 | 2950-3950 | 40 |
| GCU13 | 15hp | 7-13 | 1.15-1.8 | 4660-6100 | 75 |
| GCU30 | From 20hp-30hp | 7-13 | 1.75-3.6 | 2950-5500 | 140 |
| GCU33 | From 20hp-30hp | 7-13 | 1.75-3.5 | 2850-5100 | 137 |
| GCU55 | From 40hp-60hp | 7-13 | 4.2-8.3 | 3000-6500 | 190 |
Compact Screw Airend Features
1. Built-in three sets of crude oil air separation device, to solve the problem of oil consumption
2. More convenient maintenance
3. Smaller size and Low noise
4. We not only provide compact unit,but also can be customized
Compact Screw Airend Advantages
More than 40 years of experience in theory and practice of screw compact unit, the engineers of WOYO focus on special screw airends and modules of green intelligent screw air compressor R&D and manufacturing. For saving energy, reducing emission and protecting environmental,create more value for customers in three aspects. More green protection for the Earth.
1. The Profile: According to WOYO and German & Italian partner rotor profile levels of energy efficiency standards for new optimization,also can guarantee good performance even in extreme conditions.
2. Rotor Grinding: German Kapp and Italian SU grinding machine are processing and checking.
3. Bearing: Use SKF or NTN high quality thrust and radial bearing.
4. Shaft seal/Sleeve: Famous German brand lip seal/sleeve.
5. Driving model: 2P 1:1 direct driven or belt driven.
Our Company Service
1. We have own developing and designing team, which ensure our own technological and innoative products for customers.
2. For any customers who send us the samples of rotors or airend, we will design and develop better ones based on the samples.
3. We are manufacturer, factory, so we have the ability of mass production.
Technical Support:
Most of our WOYO products adopt German advanced technilogy, and the producing machine are all equipped with German and Japan.
After Sale Service:
Our working team will always reply you if you need any technical support and help, we can use video, whatsapp and other commication tools to help
