Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Power: | 10hp |
|---|---|---|---|
| Type: | Screw | Motor: | PM |
| Frequency Transformer: | Inovance | Air Capacity: | 0.7-1.1M3/min |
| Working Pressure: | 0.8-1.3Mpa | ||
| High Light: | 1.1M3/Min Permanent Magnet Screw Compressor,PM Air Compressor 10hp,PM 10hp rotary screw compressor |
||

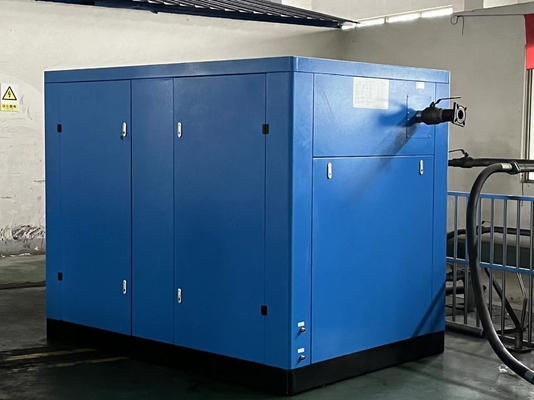

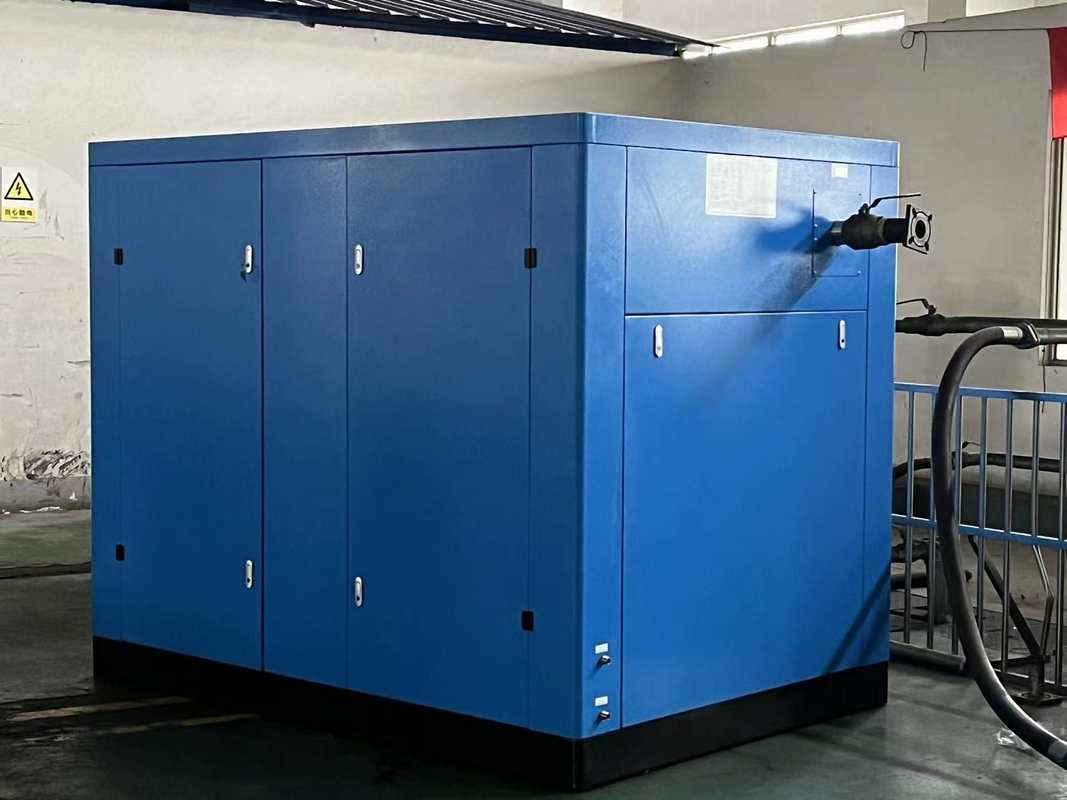

PM Screw air compressor 10hp, Direct Drive
1. Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution.
2. The efficient permanent magnet motor and the Airend are perfectly matched. Through the advanced speed regulation and frequency conversion technology of the frequency converter, it can greatly reduce the use cost of customers and provide stable and reliable compressed air.
3. Permanent magnet frequency conversion model can adjust the running speed of air compressor according to the air consumption of the terminal, so that the power consumed by the air compressor is in linear proportion to the gas produced, which has achieved the purpose of stabilizing the pressure and saving energy
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
HV10 |
7.5 |
0.8-1.3 |
0.7-1.1 |
G1/2 |
180 |
960*650*850 |
|
HV15 |
11 |
0.8-1.3 |
1.0-1.7 |
G3/4 |
300 |
1000*750*1000 |
|
HV20 |
15 |
0.8-1.3 |
1.6-2.3 |
G3/4 |
320 |
1000*750*1000 |
|
HV30 |
22 |
0.8-1.3 |
2.7-3.4 |
G1 |
420 |
1070*850*1260 |
|
HV40 |
30 |
0.8-1.3 |
3.1-5.0 |
G1 |
450 |
1070*850*1260 |
|
HV50 |
37 |
0.8-1.3 |
4.7-6.4 |
G1 1/2 |
600 |
1200*1000*1390 |
|
HV60 |
45 |
0.8-1.3 |
5.7-7.2 |
G1 1/2 |
700 |
1200*1000*1390 |
|
HV75 |
55 |
0.8-1.3 |
6.7-9.4 |
G2 |
920 |
1700*1200*1550 |
|
HV100 |
75 |
0.8-1.3 |
9.1-12.2 |
G2 |
950 |
1700*1200*1550 |
|
HV125 |
90 |
0.8-1.3 |
11.4-15.2 |
G2 |
1350 |
2100*1300*1650 |
|
HV150 |
110 |
0.8-1.3 |
14.5-19.9 |
DN80 |
2650 |
2500*1650*1900 |
|
HV180 |
132 |
0.8-1.3 |
16-23 |
DN80 |
2850 |
2500*1650*1900 |
|
HV220 |
160 |
0.8-1.3 |
21-27 |
DN80 |
4100 |
3000*1900*1950 |
|
HV250 |
185 |
0.8-1.3 |
23-30 |
DN80 |
4300 |
3000*1900*1950 |
|
HV270 |
200 |
0.8-1.3 |
25.5-32.5 |
DN100 |
5300 |
3600*2200*2200 |
|
HV300 |
220 |
0.8-1.3 |
28.8-38 |
DN100 |
5500 |
3600*2200*2200 |
|
HV340 |
250 |
0.8-1.3 |
31.5-43 |
DN100 |
5800 |
3600*2200*2200 |
Company Information
Founded in 1996, WOYO is a High-tech enterprise with patent skills focuses on screw compressor industry. WOYO together with Wolkair Germany and GASCOT Germany formed a Joint Venture----WOYO Superdo in 2003. WOYO Superdo Achieved excellent results in research&develop of core components, Modular designing, Quality Management, Precision Machining and Large-scale production.
There is a workshop of 20000 ㎡ with KAPP and SU rotor grinding machine, Japanese horizontal machining center and coordinate measuring machine in our factory. Over 120 Employees work for us.
Our vision is creating value. Our skills and products are approved by more and more customers in light industry because we provide not only the compressors but also made-to-measure compressed air solutions to reduce the cost for customers.
We will supply more reliable and more economical compressor system and Service to our customer in global.
