Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Power: | 20hp |
|---|---|---|---|
| Type: | Screw | Motor: | PM |
| Frequency Transformer: | Inovance | Air Capacity: | 1.6-2.3M3/min |
| Working Pressure: | 0.8-1.3Mpa | ||
| High Light: | PM 20hp Rotary Screw Compressor,Rotary Screw Compressor 2.3M3/Min,20hp variable speed screw compressor |
||

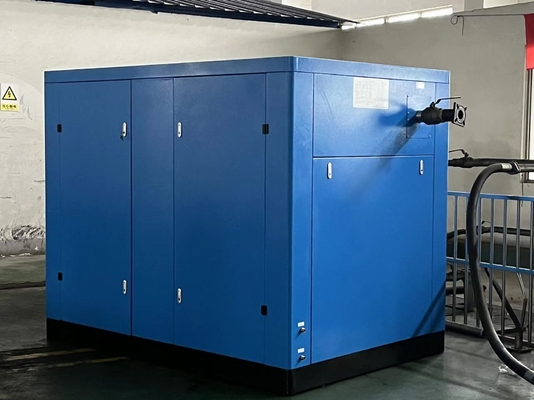

PM Screw Air Compressor 20hp Direct Drive
Features:
A. Professional design by our engineers originally from WOYO
B. Better stability and reliability with higher efficiency
C. Low-speed design low-noise running , longer lifespan
Advantages:
1. The efficient permanent magnet motor and the Airend are perfectly matched. Through the advanced speed regulation and frequency conversion technology of the frequency converter, it can greatly reduce the use cost of customers and provide stable and reliable compressed air.
2. Permanent magnet frequency conversion model can adjust the running speed of air compressor according to the air consumption of the terminal, so that the power consumed by the air compressor is in linear proportion to the gas produced, which has achieved the purpose of stabilizing the pressure and saving energy
Specification:
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
HV10 |
7.5 |
0.8-1.3 |
0.7-1.1 |
G1/2 |
180 |
960*650*850 |
|
HV15 |
11 |
0.8-1.3 |
1.0-1.7 |
G3/4 |
300 |
1000*750*1000 |
|
HV20 |
15 |
0.8-1.3 |
1.6-2.3 |
G3/4 |
320 |
1000*750*1000 |
|
HV30 |
22 |
0.8-1.3 |
2.7-3.4 |
G1 |
420 |
1070*850*1260 |
|
HV40 |
30 |
0.8-1.3 |
3.1-5.0 |
G1 |
450 |
1070*850*1260 |
|
HV50 |
37 |
0.8-1.3 |
4.7-6.4 |
G1 1/2 |
600 |
1200*1000*1390 |
|
HV60 |
45 |
0.8-1.3 |
5.7-7.2 |
G1 1/2 |
700 |
1200*1000*1390 |
|
HV75 |
55 |
0.8-1.3 |
6.7-9.4 |
G2 |
920 |
1700*1200*1550 |
|
HV100 |
75 |
0.8-1.3 |
9.1-12.2 |
G2 |
950 |
1700*1200*1550 |
|
HV125 |
90 |
0.8-1.3 |
11.4-15.2 |
G2 |
1350 |
2100*1300*1650 |
|
HV150 |
110 |
0.8-1.3 |
14.5-19.9 |
DN80 |
2650 |
2500*1650*1900 |
|
HV180 |
132 |
0.8-1.3 |
16-23 |
DN80 |
2850 |
2500*1650*1900 |
|
HV220 |
160 |
0.8-1.3 |
21-27 |
DN80 |
4100 |
3000*1900*1950 |
|
HV250 |
185 |
0.8-1.3 |
23-30 |
DN80 |
4300 |
3000*1900*1950 |
|
HV270 |
200 |
0.8-1.3 |
25.5-32.5 |
DN100 |
5300 |
3600*2200*2200 |
|
HV300 |
220 |
0.8-1.3 |
28.8-38 |
DN100 |
5500 |
3600*2200*2200 |
|
HV340 |
250 |
0.8-1.3 |
31.5-43 |
DN100 |
5800 |
3600*2200*2200 |
FAQ
Q: Are you manufacturer?
WOYO: Yes,we are professional air compressor manufacturer over 40 years and our factory located in Wuxi.
Q: How long is your Screw Airend warranty?
WOYO: For 2 year.
Q: Do you provide After- sales service parts?
WOYO: Of course, We could provide easy- consumable spares.
Q: How long could your Screw Airend be used?
WOYO: Generally, more than 10 years.
Q: How about your price?
WOYO: Based on high quality, Our price is very competitive in this market all over the world.
Q: How about your customer service?
WOYO: For email, we could reply our customers' emails within 2 hours.
Q: How to get quicker quotation?
WOYO: When you send us inquiry, please confirm below information at the same time:
* Power
* Color
* Air Capacity
This information is helpful for us to check suitable equipment solution and quotation quickly.
