Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Power: | 30hp |
|---|---|---|---|
| Type: | Screw | Motor: | PM |
| Frequency Transformer: | Inovance | Air Capacity: | 2.7-3.4M3/min |
| Working Pressure: | 0.8-1.3Mpa | ||
| High Light: | CE ISO Permanent Magnet Screw Compressor,Permanent Magnet Screw Compressor 30hp,CE ISO 30 hp screw air compressor |
||

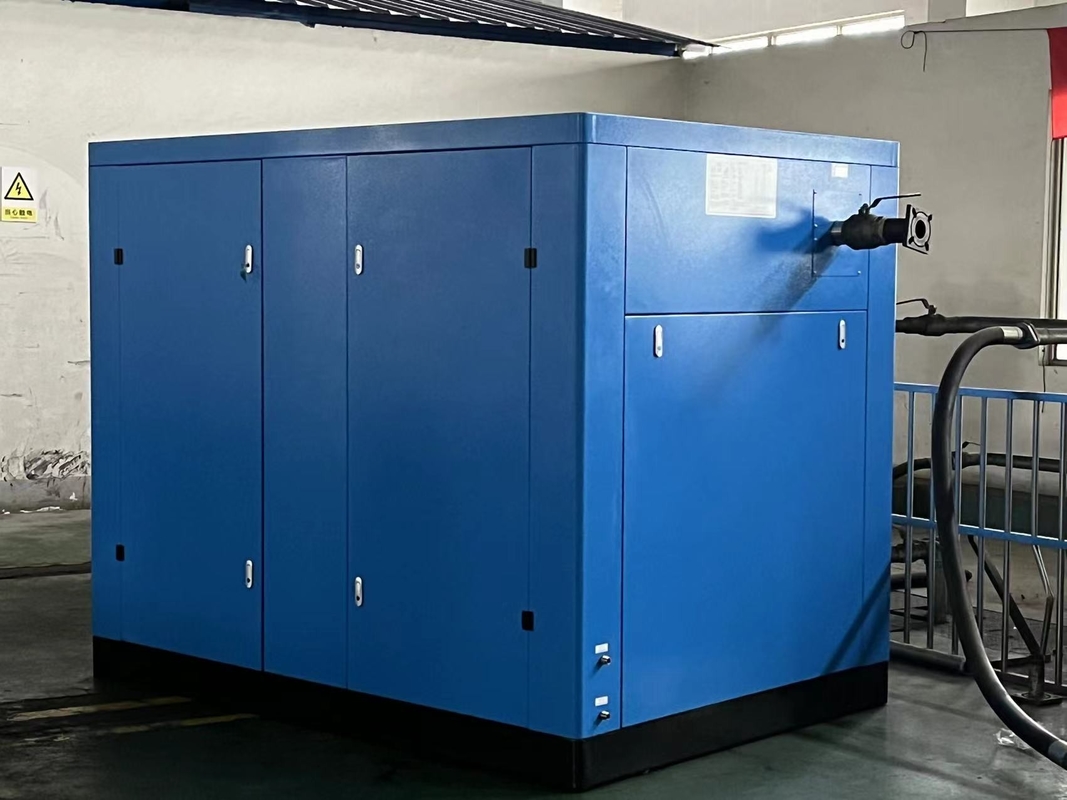

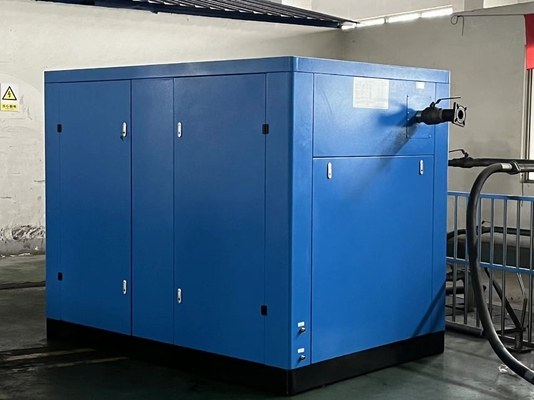

PM Screw Air Compressor 30hp, Direct Drive
1. More than 40 years of experience in theory and practice of screw compact unit, the engineers of WOYO focus on special screw airends and modules of green intelligent screw air compressor R&D and manufacturing. For saving energy, reducing emission and protecting environmental,create more value for customers in three aspects. More green protection for the Earth.
2. The efficient permanent magnet motor and the Airend are perfectly matched. Through the advanced speed regulation and frequency conversion technology of the frequency converter, it can greatly reduce the use cost of customers and provide stable and reliable compressed air.
3. Permanent magnet frequency conversion model can adjust the running speed of air compressor according to the air consumption of the terminal, so that the power consumed by the air compressor is in linear proportion to the gas produced, which has achieved the purpose of stabilizing the pressure and saving energy
Specification:
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
HV10 |
7.5 |
0.8-1.3 |
0.7-1.1 |
G1/2 |
180 |
960*650*850 |
|
HV15 |
11 |
0.8-1.3 |
1.0-1.7 |
G3/4 |
300 |
1000*750*1000 |
|
HV20 |
15 |
0.8-1.3 |
1.6-2.3 |
G3/4 |
320 |
1000*750*1000 |
|
HV30 |
22 |
0.8-1.3 |
2.7-3.4 |
G1 |
420 |
1070*850*1260 |
|
HV40 |
30 |
0.8-1.3 |
3.1-5.0 |
G1 |
450 |
1070*850*1260 |
|
HV50 |
37 |
0.8-1.3 |
4.7-6.4 |
G1 1/2 |
600 |
1200*1000*1390 |
|
HV60 |
45 |
0.8-1.3 |
5.7-7.2 |
G1 1/2 |
700 |
1200*1000*1390 |
|
HV75 |
55 |
0.8-1.3 |
6.7-9.4 |
G2 |
920 |
1700*1200*1550 |
|
HV100 |
75 |
0.8-1.3 |
9.1-12.2 |
G2 |
950 |
1700*1200*1550 |
|
HV125 |
90 |
0.8-1.3 |
11.4-15.2 |
G2 |
1350 |
2100*1300*1650 |
|
HV150 |
110 |
0.8-1.3 |
14.5-19.9 |
DN80 |
2650 |
2500*1650*1900 |
|
HV180 |
132 |
0.8-1.3 |
16-23 |
DN80 |
2850 |
2500*1650*1900 |
|
HV220 |
160 |
0.8-1.3 |
21-27 |
DN80 |
4100 |
3000*1900*1950 |
|
HV250 |
185 |
0.8-1.3 |
23-30 |
DN80 |
4300 |
3000*1900*1950 |
|
HV270 |
200 |
0.8-1.3 |
25.5-32.5 |
DN100 |
5300 |
3600*2200*2200 |
|
HV300 |
220 |
0.8-1.3 |
28.8-38 |
DN100 |
5500 |
3600*2200*2200 |
|
HV340 |
250 |
0.8-1.3 |
31.5-43 |
DN100 |
5800 |
3600*2200*2200 |
Company Information
Founded in 1996, WOYO is a High-tech enterprise with patent skills focuses on screw compressor industry. WOYO together with Wolkair Germany and GASCOT Germany formed a Joint Venture----WOYO Superdo in 2003. WOYO Superdo Achieved excellent results in research&develop of core components, Modular designing, Quality Management, Precision Machining and Large-scale production.
There is a workshop of 20000 ㎡ with KAPP and SU rotor grinding machine, Japanese horizontal machining center and coordinate measuring machine in our factory. Over 120 Employees work for us.
Our vision is creating value. Our skills and products are approved by more and more customers in light industry because we provide not only the compressors but also made-to-measure compressed air solutions to reduce the cost for customers.
We will supply more reliable and more economical compressor system and Service to our customer in global.
