Product Details:
|
| Warranty: | 2 Year For Compact Unit Airend, 1 Year For Spare Parts | Power: | 15-22hp |
|---|---|---|---|
| Type: | Screw | Airend: | Compact Unit |
| Voltage: | 380V 50hz; 230/460V 60hz | Advantage: | Low Noise And Easy For Maintenance |
| High Light: | Compact Airend Permanent Magnet Compressor,Permanent Magnet Compressor 30HP,60hz PM Air Compressor |
||

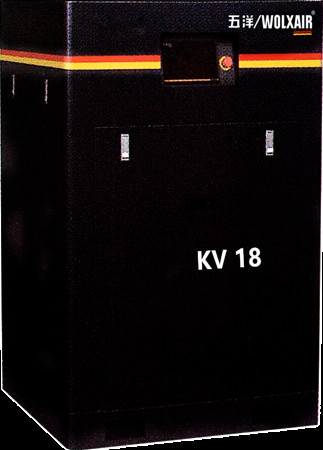

Permanent Magnet Compresor 15-30HP 380V50HZ Compact Unit Airend
Advantages
1. High quality control(ISO14001/CE/SGS Energy saving certificate)
2. Fast Delivery( 20-30 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Trial small order acceptable( Ordering quantity according to your actual needs)
Features:
1. The efficient permanent magnet motor and the Airend are perfectly matched. Through the advanced speed regulation and frequency conversion technology of the frequency converter, it can greatly reduce the use cost of customers and provide stable and reliable compressed air.
2. Permanent magnet frequency conversion model can adjust the running speed of air compressor according to the air consumption of the terminal, so that the power consumed by the air compressor is in linear proportion to the gas produced, which has achieved the purpose of stabilizing the pressure and saving energy
Parameters
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
KV10 |
7.5 |
0.7-1.0 |
0.8-1.1 |
G1/2 |
225 |
625*625*1040 |
|
KV15 |
11 |
0.7-1.0 |
1.4-1.6 |
G1/2 |
230 |
625*625*1040 |
|
KV20 |
15 |
0.7-1.0 |
2.5-2.0 |
G1 |
317 |
800*820*1200 |
|
KV25 |
18.5 |
0.7-1.0 |
3.0-2.7 |
G1 |
321 |
800*820*1200 |
|
KV30 |
22 |
0.7-1.0 |
3.6-3.2 |
G1 |
330 |
800*820*1200 |
Company Service
1. Our Advantages Service:
We have own developing and designing team, which ensure our own technological and innoative products for customers.
For any customers who send us the samples of rotors or airend, we will design and develop better ones based on the samples.
We are manufacturer, factory, so we have the ability of mass production.
2. Technical Support:
Most of our WOYO products adopt German advanced technilogy, and the producing machine are all equipped with German and Japan.
3. After Sale Service:
Our working team will always reply you if you need any technical support and help, we can use video, whatsapp and other commication tools to help you solve the problems.
