Product Details:
|
| Warranty: | 2 Year For Compact Unit Airend | Air Capacity: | 5.2-8.0M3/min |
|---|---|---|---|
| Power: | 40-60HP | Material: | Casting |
| Advantages: | Compact, Easy For Maintenance | Color: | Black And Gray |
| High Light: | 6500RPM Screw Air End,Screw Air End 40HP 60HP,Air End In Compressor 40HP |
||

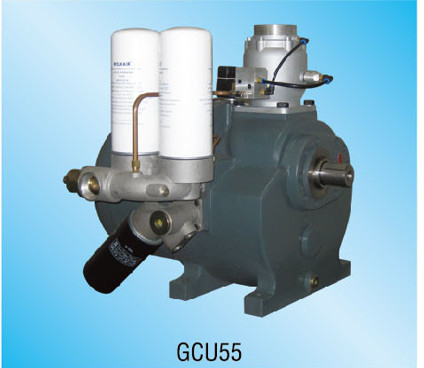

Screw Airend Compact Unit 40-60HP
Characteristics Of Screw Airend
A. Professional design by our engineers originally from WOYO
B. Better stability and reliability with higher efficiency
C. Low-speed design low-noise running , longer lifespan
D. More convenient maintenance
E. Built-in three sets of crude oil air separation device, to solve the problem of oil consumption
F. We not only provide compact unit,but also can be customized
Applied Industries Of Screw Airend
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Food & Beverage Factory, Construction works , Energy & Mining
Technical Data Of Screw Airend
| Type | Power Range(Hp) | Pressure(Bar) | Capacity(M3/min) | Speed Range(RPM) | Net Weight(KG) |
| GCU10 | From 7.5hp-10hp | 7-13 | 0.48-1.16 | 2950-3950 | 40 |
| GCU13 | 15hp | 7-13 | 1.15-1.8 | 4660-6100 | 75 |
| GCU30 | From 20hp-30hp | 7-13 | 1.75-3.6 | 2950-5500 | 140 |
| GCU33 | From 20hp-30hp | 7-13 | 1.75-3.5 | 2850-5100 | 137 |
| GCU55 | From 40hp-60hp | 7-13 | 4.2-8.3 | 3000-6500 | 190 |
Quality Control Of Screw Airend
1. The Profile: According to WOYO and German & Italian partner rotor profile levels of energy efficiency standards for new optimization,also can guarantee good performance even in extreme conditions.
2. Rotor Grinding: German Kapp and Italian SU grinding machine are processing and checking.
3. Bearing: Use SKF or NTN high quality thrust and radial bearing.
4. Shaft seal/Sleeve: Famous German brand lip seal/sleeve.
5. Driving model: 2P 1:1 direct driven or belt driven.
Company Introduction
Founded in 1996, WOYO is a High-tech enterprise with patent skills focuses on screw compressor industry. WOYO together with Wolkair Germany and GASCOT Germany formed a Joint Venture----WOYO Superdo in 2003. WOYO Superdo Achieved excellent results in research&develop of core components, Modular designing, Quality Management, Precision Machining and Large-scale production.
There is a workshop of 20000 ㎡ with KAPP and SU rotor grinding machine, Japanese horizontal machining center and coordinate measuring machine in our factory. Over 120 Employees work for us.
Our vision is creating value. Our skills and products are approved by more and more customers in light industry because we provide not only the compressors but also made-to-measure compressed air solutions to reduce the cost for customers.
