Product Details:
|
| Warranty: | 2 Year For Airend | Air Capacity: | 5.2M3/min-8.0M3/min |
|---|---|---|---|
| Power: | 40-60hp | Material: | Casting |
| Type: | Screw | Color: | Gray |
| High Light: | ISO Screw Compressor Airend,Screw Compressor Airend 40HP 60HP,40HP 60HP screw air end |
||

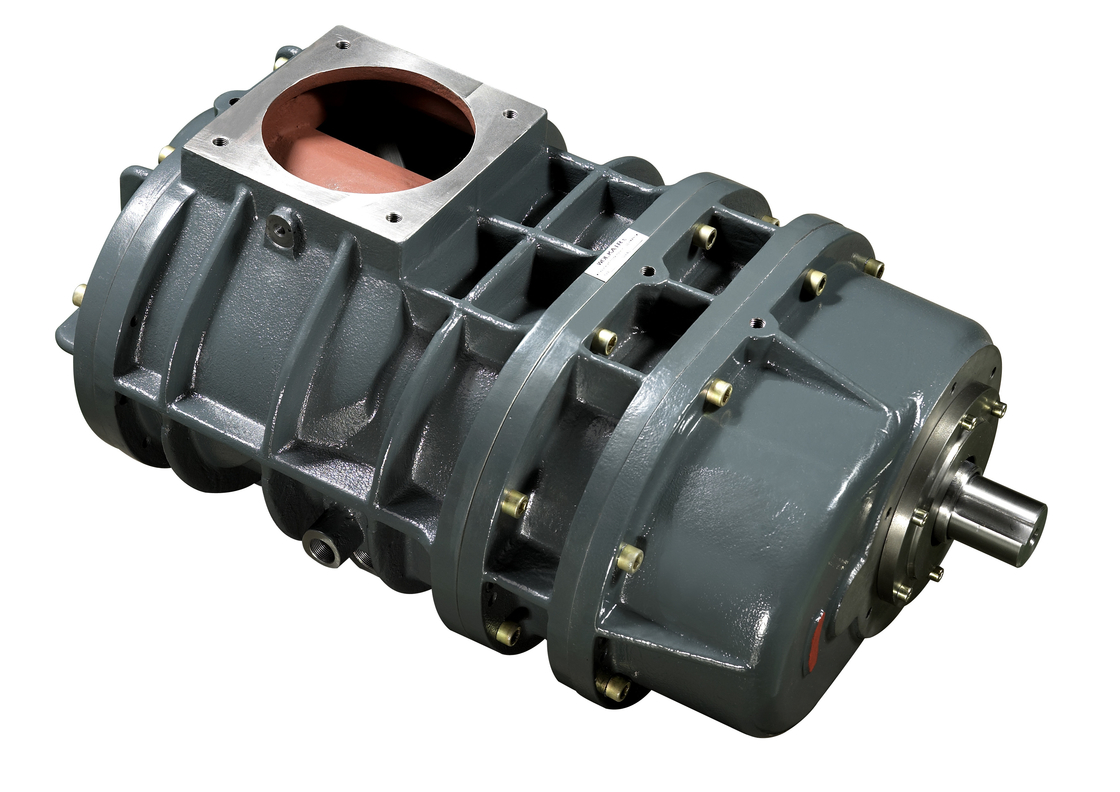

ISO Screw Air Compressor Airend 40-60HP 5.2M3/min-8.0M3/min
Advantages Of Screw Air Compressor Airend
1. High quality control(ISO14001/CE/SGS Energy saving certificate)
2. Fast Delivery( 20-30 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Trial small order acceptable( Ordering quantity according to your actual needs)
Features Of Screw Air Compressor Airend
Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution.
Technical Data Of Screw Air Compressor Airend
| Type | Power Range(Hp) | Pressure(Bar) | Capacity(M3/min) | Speed Range(RPM) | Net Weight(KG) |
| GU11 | From 7.5hp-10hp | 7-13 | 0.48-1.16 | 2950-5850 | 20 |
| GU15 | 15hp | 7-13 | 1.2-1.6 | 5300-6400 | 24 |
| GU30 | From 20hp-30hp | 7-13 | 1.6-3.6 | 3100-6500 | 30 |
| GU37 | From 25hp-30hp | 7-13 | 1.75-3.5 | 5000-6000 | 52 |
| GU55 | From 40hp-60hp | 7-13 | 3.6-8.0 | 3000-6000 | 80 |
Screw Compressor Airend Components
Six components are integrated into a module: air filter, intake control, air end, compressed air oil tank, separator cartridge and oil filter.
Company Information
Founded in 1996, WOYO is a High-tech enterprise with patent skills focuses on screw compressor industry. WOYO together with Wolkair Germany and GASCOT Germany formed a Joint Venture----WOYO Superdo in 2003. WOYO Superdo Achieved excellent results in research&develop of core components, Modular designing, Quality Management, Precision Machining and Large-scale production.
There is a workshop of 20000 ㎡ with KAPP and SU rotor grinding machine, Japanese horizontal machining center and coordinate measuring machine in our factory. Over 120 Employees work for us.
Our vision is creating value. Our skills and products are approved by more and more customers in light industry because we provide not only the compressors but also made-to-measure compressed air solutions to reduce the cost for customers.
We will supply more reliable and more economical compressor system and Service to our customer in global.
