Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Power: | 40hp |
|---|---|---|---|
| Working Pressure: | 0.7-1.3Mpa | Air Capacity: | 3.1-5.0M3/min |
| Voltage: | 208-220/460V, 60HZ & 380V 50HZ | Type: | Screw |
| High Light: | 30kw Rotary Air Screw Compressor,Rotary Air Screw Compressor 380V 50HZ,30kw 50HZ Air Compressor |
||

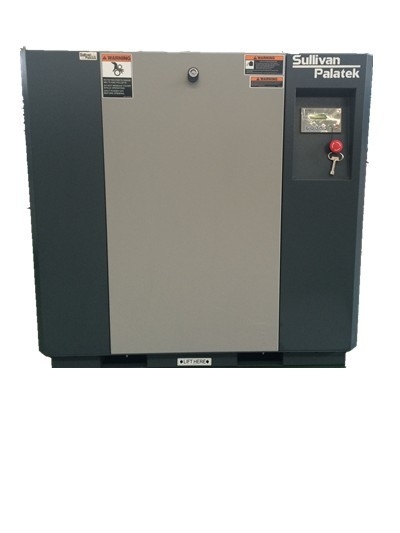

Screw air compressor, Direct drive, 40hp, 380V50HZ, 220V60HZ
If you need assistance to make sure that this part will fit your vehicle, please send us the photo of your old compressor , the VIN and/or the year, make, model and engine size of your vehicle so that we may confirm it for you. We also recommend using the compatibility chart in order to make sure that this compressor will fit your vehicle.
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
HSD10 |
7.5 |
0.8-1.3 |
0.7-1.1 |
G1/2 |
180 |
960*650*850 |
|
HSD15 |
11 |
0.8-1.3 |
1.0-1.7 |
G3/4 |
300 |
1000*750*1000 |
|
HSD20 |
15 |
0.8-1.3 |
1.6-2.3 |
G3/4 |
320 |
1000*750*1000 |
|
HSD30 |
22 |
0.8-1.3 |
2.7-3.4 |
G1 |
420 |
1070*850*1260 |
|
HSD40 |
30 |
0.8-1.3 |
3.1-5.0 |
G1 |
450 |
1070*850*1260 |
|
HSD50 |
37 |
0.8-1.3 |
4.7-6.4 |
G1 1/2 |
600 |
1200*1000*1390 |
|
HSD60 |
45 |
0.8-1.3 |
5.7-7.2 |
G1 1/2 |
700 |
1200*1000*1390 |
|
HSD75 |
55 |
0.8-1.3 |
6.7-9.4 |
G2 |
920 |
1700*1200*1550 |
|
HSD100 |
75 |
0.8-1.3 |
9.1-12.2 |
G2 |
950 |
1700*1200*1550 |
|
HSD125 |
90 |
0.8-1.3 |
11.4-15.2 |
G2 |
1350 |
2100*1300*1650 |
|
HSD150 |
110 |
0.8-1.3 |
14.5-19.9 |
DN80 |
2650 |
2500*1650*1900 |
|
HSD180 |
132 |
0.8-1.3 |
16-23 |
DN80 |
2850 |
2500*1650*1900 |
|
HSD220 |
160 |
0.8-1.3 |
21-27 |
DN80 |
4100 |
3000*1900*1950 |
|
HSD250 |
185 |
0.8-1.3 |
23-30 |
DN80 |
4300 |
3000*1900*1950 |
|
HSD270 |
200 |
0.8-1.3 |
25.5-32.5 |
DN100 |
5300 |
3600*2200*2200 |
|
HSD300 |
220 |
0.8-1.3 |
28.8-38 |
DN100 |
5500 |
3600*2200*2200 |
1. High reliability, less parts, no wearing parts, so it is reliable operation, long life, the general screw airend design life of 30 years.
2. Convenient operation and maintenance, high degree of automation, operators do not need to go through a long period of professional training, to achieve unattended operation.
3. Good power balance, no unbalanced inertia force, the machine can work smoothly at high speed, to achieve no foundation operation.
4. Strong adaptability, with the characteristics of forced gas transmission, volume flow is almost not affected by exhaust pressure, in a wide range of working conditions can maintain high efficiency, in the compressor structure without any change, suitable for a variety of working conditions, so easy to finalize the batch production.
5. Professional design by our engineers originally from WOYO
6. Low-speed design low-noise running , longer lifespan
