Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Power: | 70hp |
|---|---|---|---|
| Working Pressure: | 0.7-1.3Mpa | Air Capacity: | 6.7-9.4M3/min |
| Voltage: | 208-220/460V, 60HZ & 380V 50HZ | Type: | Screw |
| High Light: | 13 Bar Rotary Air Screw Compressor,Rotary Air Screw Compressor 55kw,55kw 13 Bar Air Compressor |
||

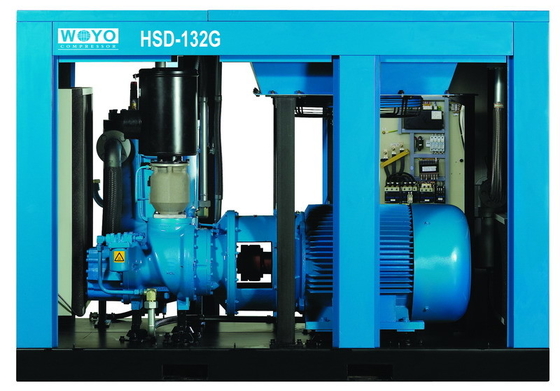

Screw Air Compressor, Direct Drive, 70hp, 380V50HZ, 220V60HZ
Screw Air Compressor Characteristics
1. Professional design by our engineers originally from WOYO
2. Better stability and reliability with higher efficiency
3. Low-speed design low-noise running , longer lifespan
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
HSD10 |
7.5 |
0.8-1.3 |
0.7-1.1 |
G1/2 |
180 |
960*650*850 |
|
HSD15 |
11 |
0.8-1.3 |
1.0-1.7 |
G3/4 |
300 |
1000*750*1000 |
|
HSD20 |
15 |
0.8-1.3 |
1.6-2.3 |
G3/4 |
320 |
1000*750*1000 |
|
HSD30 |
22 |
0.8-1.3 |
2.7-3.4 |
G1 |
420 |
1070*850*1260 |
|
HSD40 |
30 |
0.8-1.3 |
3.1-5.0 |
G1 |
450 |
1070*850*1260 |
|
HSD50 |
37 |
0.8-1.3 |
4.7-6.4 |
G1 1/2 |
600 |
1200*1000*1390 |
|
HSD60 |
45 |
0.8-1.3 |
5.7-7.2 |
G1 1/2 |
700 |
1200*1000*1390 |
|
HSD75 |
55 |
0.8-1.3 |
6.7-9.4 |
G2 |
920 |
1700*1200*1550 |
|
HSD100 |
75 |
0.8-1.3 |
9.1-12.2 |
G2 |
950 |
1700*1200*1550 |
|
HSD125 |
90 |
0.8-1.3 |
11.4-15.2 |
G2 |
1350 |
2100*1300*1650 |
|
HSD150 |
110 |
0.8-1.3 |
14.5-19.9 |
DN80 |
2650 |
2500*1650*1900 |
|
HSD180 |
132 |
0.8-1.3 |
16-23 |
DN80 |
2850 |
2500*1650*1900 |
|
HSD220 |
160 |
0.8-1.3 |
21-27 |
DN80 |
4100 |
3000*1900*1950 |
|
HSD250 |
185 |
0.8-1.3 |
23-30 |
DN80 |
4300 |
3000*1900*1950 |
|
HSD270 |
200 |
0.8-1.3 |
25.5-32.5 |
DN100 |
5300 |
3600*2200*2200 |
|
HSD300 |
220 |
0.8-1.3 |
28.8-38 |
DN100 |
5500 |
3600*2200*2200 |
Screw Air Compressor Features
1. High reliability, less parts, no wearing parts, so it is reliable operation, long life, the general screw airend design life of 30 years.
2. Convenient operation and maintenance, high degree of automation, operators do not need to go through a long period of professional training, to achieve unattended operation.
3. Good power balance, no unbalanced inertia force, the machine can work smoothly at high speed, to achieve no foundation operation.
4. Strong adaptability, with the characteristics of forced gas transmission, volume flow is almost not affected by exhaust pressure, in a wide range of working conditions can maintain high efficiency, in the compressor structure without any change, suitable for a variety of working conditions, so easy to finalize the batch production.
Company Information
Founded in 1996, WOYO is a High-tech enterprise with patent skills focuses on screw compressor industry. WOYO together with Wolkair Germany and GASCOT Germany formed a Joint Venture----WOYO Superdo in 2003. WOYO Superdo Achieved excellent results in research&develop of core components, Modular designing, Quality Management, Precision Machining and Large-scale production.
There is a workshop of 20000 ㎡ with KAPP and SU rotor grinding machine, Japanese horizontal machining center and coordinate measuring machine in our factory. Over 120 Employees work for us.
Our vision is creating value. Our skills and products are approved by more and more customers in light industry because we provide not only the compressors but also made-to-measure compressed air solutions to reduce the cost for customers.
We will supply more reliable and more economical compressor system and Service to our customer in global.
