Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Power: | 150hp |
|---|---|---|---|
| Working Pressure: | 0.7-1.3Mpa | Air Capacity: | 14.5-19.9M3/min |
| Voltage: | 208-220/460V, 60HZ & 380V 50HZ | Type: | Screw |
| High Light: | CE ISO Rotary Air Screw Compressor,Rotary Air Screw Compressor 150hp,Strong Adaptability 150 hp air compressor |
||

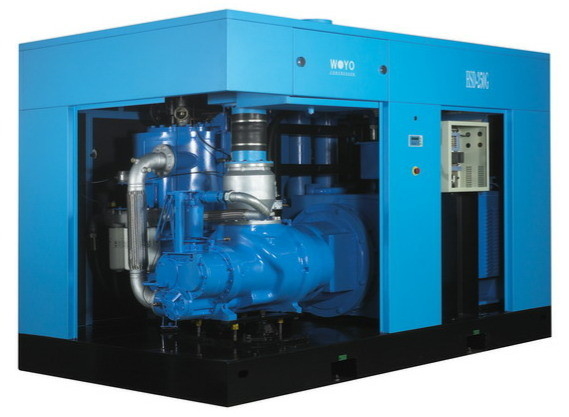

Screw air compressor, Direct drive, 150hp, 380V50HZ, 220V60HZ
Advantages:
1. High quality control(ISO14001/CE/SGS Energy saving certificate)
2. Fast Delivery( 20-30 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Trial small order acceptable( Ordering quantity according to your actual needs)
Features:
Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution.
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
HSD10 |
7.5 |
0.8-1.3 |
0.7-1.1 |
G1/2 |
180 |
960*650*850 |
|
HSD15 |
11 |
0.8-1.3 |
1.0-1.7 |
G3/4 |
300 |
1000*750*1000 |
|
HSD20 |
15 |
0.8-1.3 |
1.6-2.3 |
G3/4 |
320 |
1000*750*1000 |
|
HSD30 |
22 |
0.8-1.3 |
2.7-3.4 |
G1 |
420 |
1070*850*1260 |
|
HSD40 |
30 |
0.8-1.3 |
3.1-5.0 |
G1 |
450 |
1070*850*1260 |
|
HSD50 |
37 |
0.8-1.3 |
4.7-6.4 |
G1 1/2 |
600 |
1200*1000*1390 |
|
HSD60 |
45 |
0.8-1.3 |
5.7-7.2 |
G1 1/2 |
700 |
1200*1000*1390 |
|
HSD75 |
55 |
0.8-1.3 |
6.7-9.4 |
G2 |
920 |
1700*1200*1550 |
|
HSD100 |
75 |
0.8-1.3 |
9.1-12.2 |
G2 |
950 |
1700*1200*1550 |
|
HSD125 |
90 |
0.8-1.3 |
11.4-15.2 |
G2 |
1350 |
2100*1300*1650 |
|
HSD150 |
110 |
0.8-1.3 |
14.5-19.9 |
DN80 |
2650 |
2500*1650*1900 |
|
HSD180 |
132 |
0.8-1.3 |
16-23 |
DN80 |
2850 |
2500*1650*1900 |
|
HSD220 |
160 |
0.8-1.3 |
21-27 |
DN80 |
4100 |
3000*1900*1950 |
|
HSD250 |
185 |
0.8-1.3 |
23-30 |
DN80 |
4300 |
3000*1900*1950 |
|
HSD270 |
200 |
0.8-1.3 |
25.5-32.5 |
DN100 |
5300 |
3600*2200*2200 |
|
HSD300 |
220 |
0.8-1.3 |
28.8-38 |
DN100 |
5500 |
3600*2200*2200 |
1. High reliability, less parts, no wearing parts, so it is reliable operation, long life, the general screw airend design life of 30 years.
2. Convenient operation and maintenance, high degree of automation, operators do not need to go through a long period of professional training, to achieve unattended operation.
3. Good power balance, no unbalanced inertia force, the machine can work smoothly at high speed, to achieve no foundation operation.
4. Strong adaptability, with the characteristics of forced gas transmission, volume flow is almost not affected by exhaust pressure, in a wide range of working conditions can maintain high efficiency, in the compressor structure without any change, suitable for a variety of working conditions, so easy to finalize the batch production.
