1.2M3/min 15HP Compact Unit Airend For Building Material Shops

Certification
China Wuxi WOYO Superdo Compressor Co.,Ltd certification
China Wuxi WOYO Superdo Compressor Co.,Ltd certification
I'm Online Chat Now

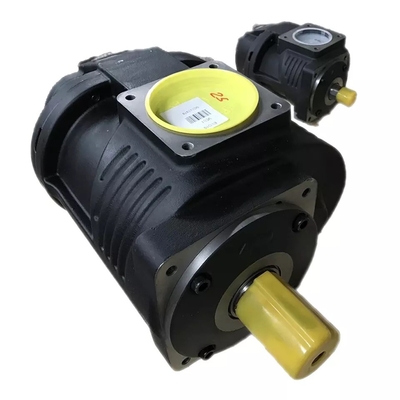

1.2M3/min 15HP Compact Unit Airend For Building Material Shops

1.2M3/min 15HP Compact Unit Airend For Building Material Shops
1.2M3/min 15HP Compact Unit Airend For Building Material Shops
1.2M3/min 15HP Compact Unit Airend For Building Material Shops 1.2M3/min 15HP Compact Unit Airend For Building Material Shops

Large Image :  1.2M3/min 15HP Compact Unit Airend For Building Material Shops

Product Details:
Place of Origin: CHINA
Brand Name: WOLXAIR
Certification: CE,ISO
Model Number: GCU13
Payment & Shipping Terms:
Minimum Order Quantity: 1-10 unit
Price: To be confirmed
Packaging Details: PLYWOOD CASE
Delivery Time: 10-30 days
Payment Terms: T/T
Supply Ability: 300 unit/Month

1.2M3/min 15HP Compact Unit Airend For Building Material Shops

Description
Air Capacity: 1.2M3/min Power: 15HP
Material: Casting Advantages: Compact, Easy For Maintenance
Color: Black And Gray Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company
Condition: New Warranty: 2 Year
High Light:

1.2M3/min Compact Unit Airend

,

15HP Compact Unit Airend

,

Building Material Shops Screw Air End



Black And Gray Compact Unit Airend For Building Material Shops



Saving Energy, Reducing Emission And Protecting Environment

1. The Profile: According to WOYO and German & Italian partner rotor profile levels of energy efficiency standards for new optimization,also can guarantee good performance even in extreme conditions.

2. Rotor Grinding: German Kapp and Italian SU grinding machine are processing and checking.

3. Bearing: Use SKF or NTN high quality thrust and radial bearing.

4. Shaft seal/Sleeve: Famous German brand lip seal/sleeve.

5. Driving model: 2P 1:1 direct driven or belt driven.





Technical Data Of Screw Airend

Type Power Range(Hp) Pressure(Bar) Capacity(M3/min) Speed Range(RPM) Net Weight(KG)
GCU10 From 7.5hp-10hp 7-13 0.48-1.16 2950-3950   40

GCU13 15hp 7-13 1.15-1.8 4660-6100 75

GCU30 From 20hp-30hp 7-13 1.75-3.6 2950-5500   140

GCU33 From 20hp-30hp 7-13 1.75-3.5 2850-5100  137

GCU55 From 40hp-60hp 7-13 4.2-8.3 3000-6500  190




About Our Company

Founded in 1996, WOYO is a High-tech enterprise with patent skills focuses on screw compressor industry. WOYO together with Wolkair Germany and GASCOT Germany formed a Joint Venture----WOYO Superdo in 2003. WOYO Superdo Achieved excellent results in research&develop of core components, Modular designing, Quality Management, Precision Machining and Large-scale production.



There is a workshop of 20000 ㎡ with KAPP and SU rotor grinding machine, Japanese horizontal machining center and coordinate measuring machine in our factory. Over 120 Employees work for us.



Our vision is creating value. Our skills and products are approved by more and more customers in light industry because we provide not only the compressors but also made-to-measure compressed air solutions to reduce the cost for customers.



We will supply more reliable and more economical compressor system and Service to our customer in global.
