Product Details:
|
| Warranty: | 2 Years For Airend, 1 Year For Rest Of Parts | Type: | Screw |
|---|---|---|---|
| Power Source: | AC | Motor Power: | 7.5kw |
| Working Pressure: | 7bar | Input Voltage: | 380V50HZ |
| High Light: | 7.5KW Vehicle Air compressor,380V 50HZ Air Compressor,7.5KW Screw Air Compressor |
||

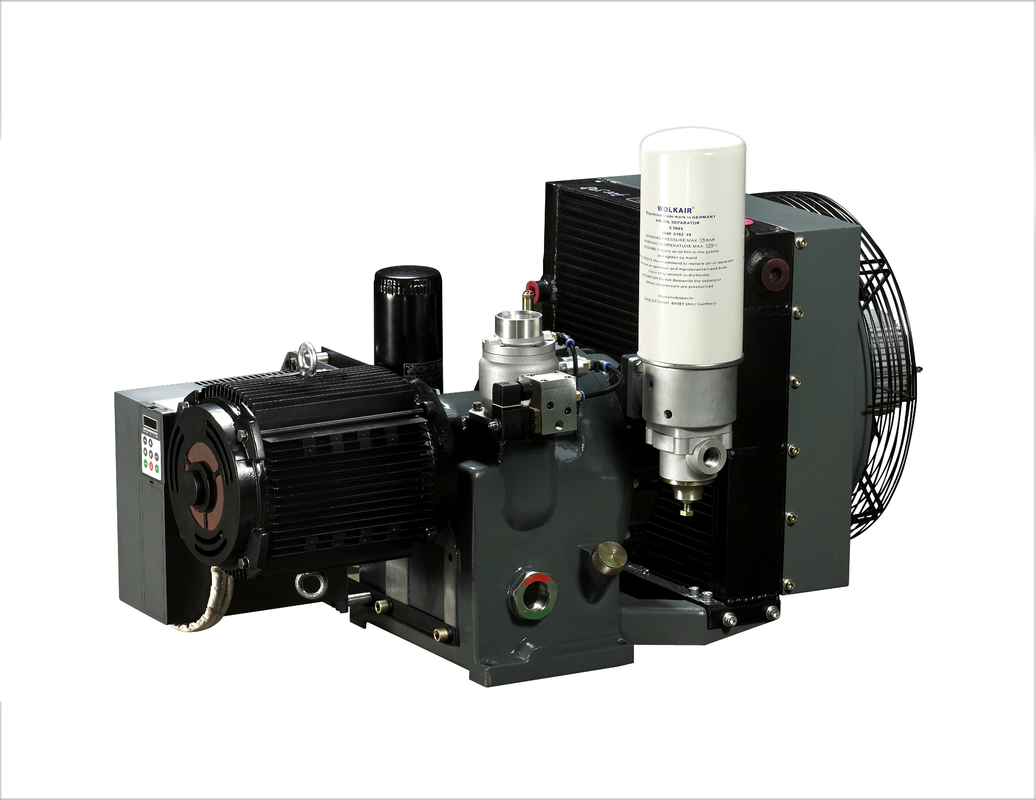

E-BUS Compressor 7.5KW Vehicle Unit
The MD3 pure electric urban bus air supply system with independent intellectual property rights is the special corollary equipment designed for pure electric buses to provide compressed air power source. The compressor units provided by us are wholly assembled, with compact structure, easy installation, high efficiency, low noise, safety and energy saving. Relying on 1000 hours of service life of lubricant oil and the quality guarantee for overall one-year free maintenance cycle, the braking system and door opening and closing system of electric buses are provided with reliable compressed air.
Save the environment, ensure to provide better services and solutions, save costs for users, and seek the largest growth space. The main purpose is to protect and save energy, stimulate the growth of economic productivity, comply with market demand, save energy and reduce environmental pollution.
| Product Model | MD10 | |
| Rated discharge pressure MPa | 0.8 1.0 | |
| Nominal volume flow m³/min | 1.1 0.8 | |
| Exhaust temperature ℃ | ≤90 | |
| Motor | Rated power kW | 7.5 |
| Rated speed rpm | 2870 | |
| Startup way | Frequency conversion soft-startup | |
| Voltage V | 380 | |
| Frequency Hz | 50 | |
| Transmission mode | Direct connection with elastic coupling | |
| Oil content of gas ppm | 1 | |
| Caliber of connecting pipe inch | 1/2 | |
| Overall dimensions (length×width×height) mm | 620×440×500 | |
| Cooling way | Air cooled | |
| Unit weight Kg | ≤75 | |
| Noise level dB(A) | ≤70 | |
Company Information
Founded in 1996, WOYO is a High-tech enterprise with patent skills focuses on screw compressor industry. WOYO together with Wolkair Germany and GASCOT Germany formed a Joint Venture----WOYO Superdo in 2003. WOYO Superdo Achieved excellent results in research&develop of core components, Modular designing, Quality Management, Precision Machining and Large-scale production.
There is a workshop of 20000 ㎡ with KAPP and SU rotor grinding machine, Japanese horizontal machining center and coordinate measuring machine in our factory. Over 120 Employees work for us.
Our vision is creating value. Our skills and products are approved by more and more customers in light industry because we provide not only the compressors but also made-to-measure compressed air solutions to reduce the cost for customers.
We will supply more reliable and more economical compressor system and Service to our customer in global.
