Product Details:
|
| Warranty: | 2 Years For Airend, 1 Year For Rest Of Parts | Type: | Screw |
|---|---|---|---|
| Power Source: | AC | Motor Power: | 3kw |
| Working Pressure: | 7bar | Input Voltage: | 400-750VDC |
| High Light: | 750VDC 3kw Air Compressor,3kw Air Compressor 2870rpm,2870 rpm air cooled screw compressor |
||

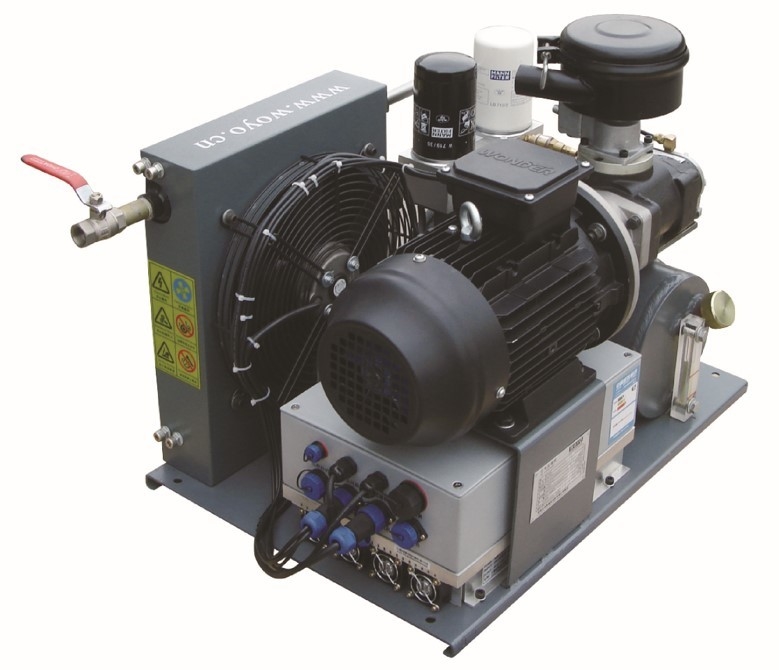

E-BUS Compressor 3KW Vehicle Unit
Description Of E-BUS Compressor
The MD3 pure electric urban bus air supply system with independent intellectual property rights is the special corollary equipment designed for pure electric buses to provide compressed air power source. The compressor units provided by us are wholly assembled, with compact structure, easy installation, high efficiency, low noise, safety and energy saving. Relying on 1000 hours of service life of lubricant oil and the quality guarantee for overall one-year free maintenance cycle, the braking system and door opening and closing system of electric buses are provided with reliable compressed air.
Advantages Of E-BUS Compressor
1. High quality control(ISO14001/CE/SGS Energy saving certificate)
2. Fast Delivery( 20-30 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Trial small order acceptable( Ordering quantity according to your actual needs)
| Product Model | MD3 | |
| Rated discharge pressure MPa | 0.8 1.0 | |
| Nominal volume flow m³/min | 0.37 0.32 | |
| Exhaust temperature ℃ | ≤90 | |
| Motor | Rated power kW | 3 |
| Rated speed rpm | 2870 | |
| Startup way | Frequency conversion soft-startup | |
| Voltage V | 380 | |
| Frequency Hz | 50 | |
| Transmission mode | Direct connection with elastic coupling | |
| Oil content of gas ppm | 1 | |
| Caliber of connecting pipe inch | 1/2 | |
| Overall dimensions (length×width×height) mm | 620×440×500 | |
| Cooling way | Air cooled | |
| Unit weight Kg | ≤75 | |
| Noise level dB(A) | ≤70 | |
| Input power supply | DC600V(Permissible range 400-750VDC) | |
FAQ
Q: Are you manufacturer?
WOYO: Yes,we are professional air compressor manufacturer over 40 years and our factory located in Wuxi.
Q: How long is your Screw Airend warranty?
WOYO: For 2 year.
Q: Do you provide After- sales service parts?
WOYO: Of course, We could provide easy- consumable spares.
Q: How long could your Screw Airend be used?
WOYO: Generally, more than 10 years.
Q: How about your price?
WOYO: Based on high quality, Our price is very competitive in this market all over the world.
Q: How about your customer service?
WOYO: For email, we could reply our customers' emails within 2 hours.
Q: How to get quicker quotation?
WOYO: When you send us inquiry, please confirm below information at the same time:
* Power
* Color
* Air Capacity
This information is helpful for us to check suitable equipment solution and quotation quickly.
