Product Details:
|
| Warranty: | 2 Year | Air Capacity: | 1.6M3/min |
|---|---|---|---|
| Power: | 15HP | Material: | Casting |
| Advantages: | Compact, Easy For Maintenance | Color: | Black And Gray |
| Name: | Compact Unit Airend | ||
| High Light: | Black and Gray Compact Unit Airend,15HP Compact Unit Airend,1.6M3/min compressor air end |
||

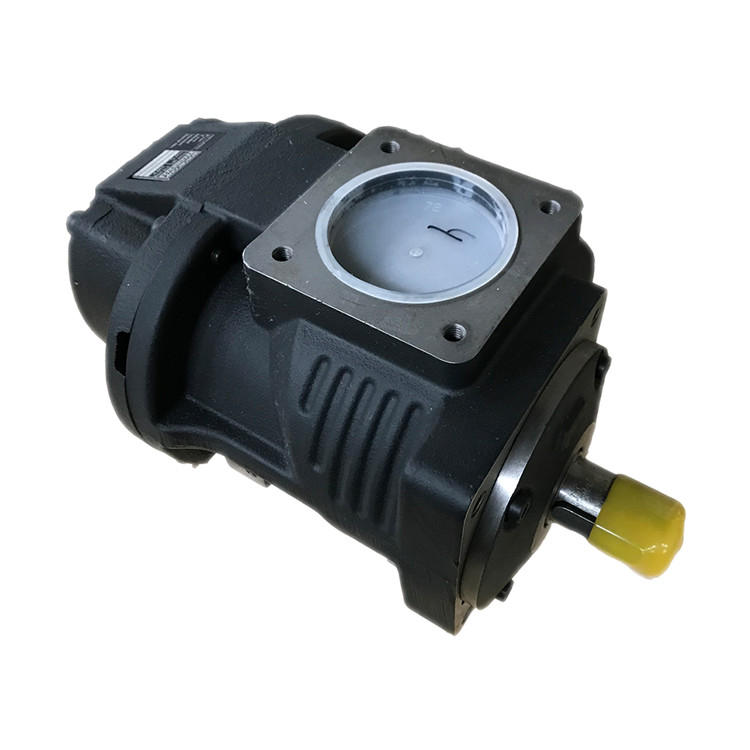

Black and Gray Casting Compact Unit Airend 15hp 1.6M3/min
As a dedicated manufacturer of small air compressors, we provide compressed air system solutions. To better serve our customers, the company keeps various air compressor parts in stock. The GCU series screw compact is one of them, and benefits from using this compact compressor air end are listed below.
1. The compact air end combines 9 parts into one unit, reducing the number of external tubes needed. The simpler design is not only easier to maintain, but it also decreases a resistance to air flow. With its lightweight ad compact structure, the screw compact unit is efficient.
2. Rotors and their housing is from Germany, ensuring a quiet and highly efficient operation.
3. A built in two stage cyclone separator and a large capacity external oil and gas separator effectively control the oil consumption rate under a 1PPM limit.
4. A return oil filter is also incorporated inside the rotor housing. It scrapes dust and other contaminates off the returning oil, which ensures the return oil pipeline is clog free.
5. All parts can be taken apart for maintenance.
6. With an added heating and cooling system, the GCU screw compact unit can operate properly on a car air compressor where extreme temperatures may be experienced.
Technical Data Of Screw Airend
| Type | Power Range(Hp) | Pressure(Bar) | Capacity(M3/min) | Speed Range(RPM) | Net Weight(KG) |
| GCU10 | From 7.5hp-10hp | 7-13 | 0.48-1.16 | 2950-3950 | 40 |
| GCU13 | 15hp | 7-13 | 1.15-1.8 | 4660-6100 | 75 |
| GCU30 | From 20hp-30hp | 7-13 | 1.75-3.6 | 2950-5500 | 140 |
| GCU33 | From 20hp-30hp | 7-13 | 1.75-3.5 | 2850-5100 | 137 |
| GCU55 | From 40hp-60hp | 7-13 | 4.2-8.3 | 3000-6500 | 190 |
Saving Energy, Reducing Emission And Protecting Environment
1. The Profile: According to WOYO and German & Italian partner rotor profile levels of energy efficiency standards for new optimization,also can guarantee good performance even in extreme conditions.
2. Rotor Grinding: German Kapp and Italian SU grinding machine are processing and checking.
3. Bearing: Use SKF or NTN high quality thrust and radial bearing.
4. Shaft seal/Sleeve: Famous German brand lip seal/sleeve.
5. Driving model: 2P 1:1 direct driven or belt driven.
