Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Airend Type: | Two Stages |
|---|---|---|---|
| Motor: | PM | Air Capacity: | 33.0-22.5M3/min |
| Working Pressure: | 0.7-1.3 Mpa | Advantages: | Low Speed And High Capacity With Low-Energy |
| High Light: | pharmaceutical Permanent Magnet Air Compressor,220HP Permanent Magnet Air Compressor,220HP two stage screw air compressor |
||

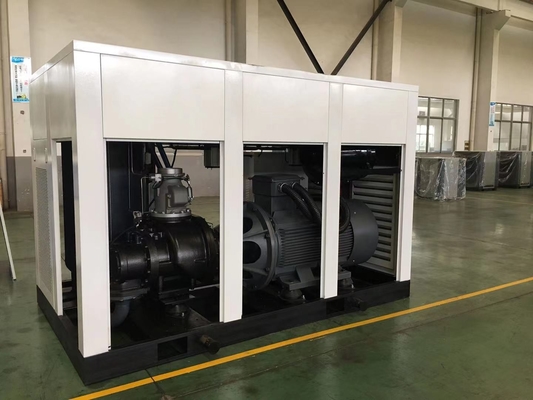

Two Stages PM Compressor 220HP 33.0-22.5M3/min
Details Of Two Stage Screw Air Compressor
Two Stage PM Air Compressors are extensively applied to pharmaceutical, textile, instruments, electronics, machinery, printing, chemicals, mining and transportationindustries. Using two-stage compressor is to use two groups of SKY helical rotors of different sizes to achieve a reasonable pressure distribution and reduce the compression ratio of each compression. Low compression ratio has two special advantages: one is to reduce internal leakage and improve volume efficiency; the other is to greatly reduce the load of bearings, improve the life of bearings and extend the life of the main engine.
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
HVV30 |
22 |
0.7-1.3 |
4.3-2.7 |
G1-1/2 |
650 |
1500*1000*1350 |
|
HVV40 |
30 |
0.7-1.3 |
6.0-3.9 |
G1-1/2 |
700 |
1500*1000*1350 |
|
HVV50 |
37 |
0.7-1.3 |
7.1-5.4 |
G1-1/2 |
750 |
1500*1000*1350 |
|
HVV60 |
45 |
0.7-1.3 |
10.0-6.8 |
G2 |
1250 |
2100*1300*1650 |
|
HVV75 |
55 |
0.7-1.3 |
13.0-7.5 |
G2 |
1300 |
2100*1300*1650 |
|
HVV100 |
75 |
0.7-1.3 |
15.5-10.2 |
G2 |
1350 |
2100*1300*1650 |
|
HVV125 |
90 |
0.7-1.3 |
19.8-14.0 |
DN80 |
2700 |
2500*1650*1900 |
|
HVV150 |
110 |
0.7-1.3 |
24.0-16.0 |
DN80 |
2800 |
2500*1650*1900 |
|
HVV180 |
132 |
0.7-1.3 |
27.5-19.0 |
DN80 |
3000 |
2500*1650*1900 |
|
HVV220 |
160 |
0.7-1.3 |
33.0-22.5 |
DN80 |
4300 |
3000*1900*1950 |
|
HVV250 |
185 |
0.7-1.3 |
39.0-27.5 |
DN80 |
4400 |
3000*1900*1950 |
|
HVV270 |
200 |
0.7-1.3 |
43.5-31.5 |
DN100 |
5000 |
3600*2200*2200 |
|
HVV300 |
220 |
0.7-1.3 |
51.5-35.5 |
DN100 |
5500 |
3600*2200*2200 |
|
HVV340 |
250 |
0.7-1.3 |
54.0-38.0 |
DN125 |
6000 |
3600*2200*2200 |
|
HVV380 |
280 |
0.7-1.3 |
60.0-43.0 |
DN125 |
6800 |
4000*2300*2300 |
|
HVV420 |
315 |
0.7-1.3 |
65.0-50.5 |
DN125 |
7000 |
4000*2300*2300 |
|
HVV480 |
355 |
0.7-1.3 |
75.0-55.0 |
DN150 |
8500 |
4200*2200*2350 |
|
HVV540 |
400 |
0.7-1.3 |
84.0-61.0 |
DN150 |
9000 |
4200*2200*2350 |
Advantage Of Two Stage Screw Air Compressor
1. Hierarchical compression to save compression work
Through the two-stage series process, the original single-stage compression process is divided into two compression processes. Such a process setting can reduce the ratio of each single-stage compression process, which can effectively reduce the compression and compression of each stage screw. Required drive power.
In the process of ideal gas compression, the sum of the power required for single-stage pressure transmission and the power required for multi-stage compression is equal, but in the actual compression process, due to a series of factors such as the transmission power loss of the coupling, the friction coefficient of the bearing and the viscosity of the coolant.
With the increase of the applied force, the useless power exceeding the same ratio is generated, so the useless power in the actual compression process can be reduced by reducing the compression ratio of each stage, so that the sum of the power required for multi-stage compression is less than that of single-stage compression Required power.
2. The intermediate warm oil cools and reduces the temperature of the gas entering the next stage.
All the gas compression process is actually the process of the friction between the gas and the moving parts and being compressed by it.
In the presence of friction, the gas will rise in temperature due to friction, and there will inevitably be a trend of shadow accounts. This part of energy will be released in the form of force in the fixed volume of air compression by increasing its own pressure.
The temperature rise of the gas increases the pressure of the gas itself during the compression process and increases the compression ratio. Therefore, it is necessary to pay extra power to drive the equipment to shrink the air to the desired pressure value. Therefore, the two-stage screw compressor is provided with a coolant injection curtain device.
