Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Airend Type: | Two Stages |
|---|---|---|---|
| Motor: | PM | Air Capacity: | 51.5-35.5M3/min |
| Working Pressure: | 0.7-1.3 Mpa | Advantages: | Low Speed And High Capacity With Low-Energy |
| High Light: | 35.5M3/Min Variable Frequency Drive Air Compressor,Variable Frequency Drive Air Compressor 300hp,300hp double stage air compressor |
||

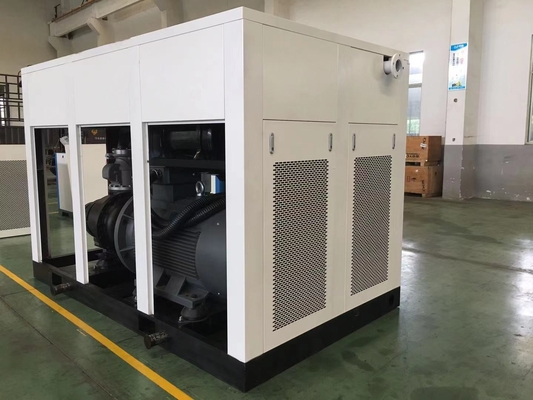

Two Stages PM Compressor 300hp
The two-stage permanent magnet variable frequency air compressor is a compression process, entering the first stage of compression, and then entering the second stage of compression. At the same power, the gas output of the first stage of compression is up to 15%, and the energy saving effect can reach 20-50%.
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
HVV30 |
22 |
0.7-1.3 |
4.3-2.7 |
G1-1/2 |
650 |
1500*1000*1350 |
|
HVV40 |
30 |
0.7-1.3 |
6.0-3.9 |
G1-1/2 |
700 |
1500*1000*1350 |
|
HVV50 |
37 |
0.7-1.3 |
7.1-5.4 |
G1-1/2 |
750 |
1500*1000*1350 |
|
HVV60 |
45 |
0.7-1.3 |
10.0-6.8 |
G2 |
1250 |
2100*1300*1650 |
|
HVV75 |
55 |
0.7-1.3 |
13.0-7.5 |
G2 |
1300 |
2100*1300*1650 |
|
HVV100 |
75 |
0.7-1.3 |
15.5-10.2 |
G2 |
1350 |
2100*1300*1650 |
|
HVV125 |
90 |
0.7-1.3 |
19.8-14.0 |
DN80 |
2700 |
2500*1650*1900 |
|
HVV150 |
110 |
0.7-1.3 |
24.0-16.0 |
DN80 |
2800 |
2500*1650*1900 |
|
HVV180 |
132 |
0.7-1.3 |
27.5-19.0 |
DN80 |
3000 |
2500*1650*1900 |
|
HVV220 |
160 |
0.7-1.3 |
33.0-22.5 |
DN80 |
4300 |
3000*1900*1950 |
|
HVV250 |
185 |
0.7-1.3 |
39.0-27.5 |
DN80 |
4400 |
3000*1900*1950 |
|
HVV270 |
200 |
0.7-1.3 |
43.5-31.5 |
DN100 |
5000 |
3600*2200*2200 |
|
HVV300 |
220 |
0.7-1.3 |
51.5-35.5 |
DN100 |
5500 |
3600*2200*2200 |
|
HVV340 |
250 |
0.7-1.3 |
54.0-38.0 |
DN125 |
6000 |
3600*2200*2200 |
|
HVV380 |
280 |
0.7-1.3 |
60.0-43.0 |
DN125 |
6800 |
4000*2300*2300 |
|
HVV420 |
315 |
0.7-1.3 |
65.0-50.5 |
DN125 |
7000 |
4000*2300*2300 |
|
HVV480 |
355 |
0.7-1.3 |
75.0-55.0 |
DN150 |
8500 |
4200*2200*2350 |
|
HVV540 |
400 |
0.7-1.3 |
84.0-61.0 |
DN150 |
9000 |
4200*2200*2350 |
Features
1. The compression ratio of each compression stage is precisely designed to reduce the load on bearings and gears and extend the service life of the main Airend.
2. The main Airend is designed with large rotor and low speed, and contains two independent compression units.
3. The first stage compression rotor and the second stage compression rotor are combined in a shell, respectively driven directly by helical gear, so that each stage rotor can obtain better linear speed and higher compression transmission efficiency.
4. The rotor adopts the newly designed rotor ultraviolet current profile. After more than 20 finishing processes, ensure the rotor profile precision, reliability and effectiveness.
Advantages:
1. High quality control(ISO14001/CE/SGS Energy saving certificate)
2. Fast Delivery( 20-30 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Trial small order acceptable( Ordering quantity according to your actual needs)
