Product Details:
|
Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Airend Type: | Two Stages |
---|---|---|---|
Motor: | PM | Air Capacity: | 65.0-50.5M3/min |
Working Pressure: | 0.7-1.3 Mpa | Advantages: | Low Speed And High Capacity With Low-Energy |
High Light: | Permanent Magnet Air Compressor 420HP,420HP Double Screw Air Compressor,420HP Two Stage Air Compressor |

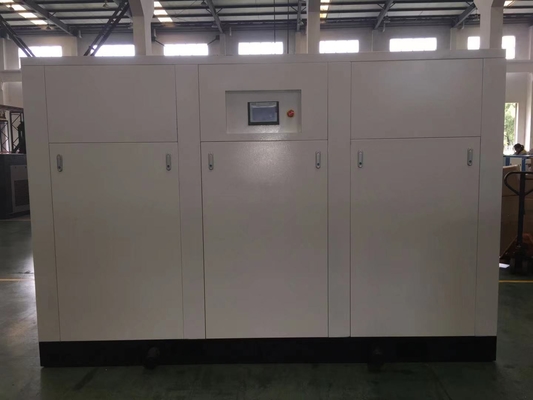

Two Stages PM Compressor 420HP
Features
1. simple structure, flexible installation and high efficiency.
2. own efficient, energy-saving
3. can reduce the bearing load,improve volume efficiency,
4. in the case of some load operation,can improve efficlency,energy saving.
5. Double screw air compressor than twin-screw compressor energy saving up to 15%, each run for 8000 hours a year, annual savings of about 200 thousand yuan electricity.
Advantages
1. The compression ratio of each compression stage is precisely designed to reduce the load on bearings and gears and extend the service life of the main Airend.
2. The main Airend is designed with large rotor and low speed, and contains two independent compression units.
3. The first stage compression rotor and the second stage compression rotor are combined in a shell, respectively driven directly by helical gear, so that each stage rotor can obtain better linear speed and higher compression transmission efficiency.
4. The rotor adopts the newly designed rotor ultraviolet current profile. After more than 20 finishing processes, ensure the rotor profile precision, reliability and effectiveness.
Specifications
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
HVV30 |
22 |
0.7-1.3 |
4.3-2.7 |
G1-1/2 |
650 |
1500*1000*1350 |
HVV40 |
30 |
0.7-1.3 |
6.0-3.9 |
G1-1/2 |
700 |
1500*1000*1350 |
HVV50 |
37 |
0.7-1.3 |
7.1-5.4 |
G1-1/2 |
750 |
1500*1000*1350 |
HVV60 |
45 |
0.7-1.3 |
10.0-6.8 |
G2 |
1250 |
2100*1300*1650 |
HVV75 |
55 |
0.7-1.3 |
13.0-7.5 |
G2 |
1300 |
2100*1300*1650 |
HVV100 |
75 |
0.7-1.3 |
15.5-10.2 |
G2 |
1350 |
2100*1300*1650 |
HVV125 |
90 |
0.7-1.3 |
19.8-14.0 |
DN80 |
2700 |
2500*1650*1900 |
HVV150 |
110 |
0.7-1.3 |
24.0-16.0 |
DN80 |
2800 |
2500*1650*1900 |
HVV180 |
132 |
0.7-1.3 |
27.5-19.0 |
DN80 |
3000 |
2500*1650*1900 |
HVV220 |
160 |
0.7-1.3 |
33.0-22.5 |
DN80 |
4300 |
3000*1900*1950 |
HVV250 |
185 |
0.7-1.3 |
39.0-27.5 |
DN80 |
4400 |
3000*1900*1950 |
HVV270 |
200 |
0.7-1.3 |
43.5-31.5 |
DN100 |
5000 |
3600*2200*2200 |
HVV300 |
220 |
0.7-1.3 |
51.5-35.5 |
DN100 |
5500 |
3600*2200*2200 |
HVV340 |
250 |
0.7-1.3 |
54.0-38.0 |
DN125 |
6000 |
3600*2200*2200 |
HVV380 |
280 |
0.7-1.3 |
60.0-43.0 |
DN125 |
6800 |
4000*2300*2300 |
HVV420 |
315 |
0.7-1.3 |
65.0-50.5 |
DN125 |
7000 |
4000*2300*2300 |
HVV480 |
355 |
0.7-1.3 |
75.0-55.0 |
DN150 |
8500 |
4200*2200*2350 |
HVV540 |
400 |
0.7-1.3 |
84.0-61.0 |
DN150 |
9000 |
4200*2200*2350 |
Company Service
1. Our Advantages Service:
We have own developing and designing team, which ensure our own technological and innoative products for customers.
For any customers who send us the samples of rotors or airend, we will design and develop better ones based on the samples.
We are manufacturer, factory, so we have the ability of mass production.
2. Technical Support:
Most of our WOYO products adopt German advanced technilogy, and the producing machine are all equipped with German and Japan.
3. After Sale Service:
Our working team will always reply you if you need any technical support and help, we can use video, whatsapp and other commication tools to help you solve the problems.
