Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Airend Type: | Two Stages |
|---|---|---|---|
| Motor: | PM | Air Capacity: | 39.0-27.5M3/min |
| Working Pressure: | 0.7-1.3 Mpa | Advantages: | Low Speed And High Capacity With Low-Energy |
| High Light: | 27.5M3/Min Double Stage Compressor,Double Stage Compressor 250hp,250hp dual stage compressor |
||

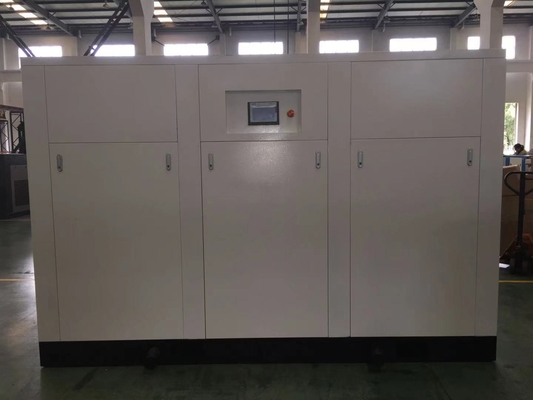

Two Stages PM Compressor 250hp 39.0-27.5M3/Min
Introduction
Double stage screw air compressor in the main parts with double screw, the compression process by the first stage screw and second screw through grading series compression.
The two-stage permanent magnet variable frequency air compressor is a compression process, entering the first stage of compression, and then entering the second stage of compression. At the same power, the gas output of the first stage of compression is up to 15%, and the energy saving effect can reach 20-50%.
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
HVV30 |
22 |
0.7-1.3 |
4.3-2.7 |
G1-1/2 |
650 |
1500*1000*1350 |
|
HVV40 |
30 |
0.7-1.3 |
6.0-3.9 |
G1-1/2 |
700 |
1500*1000*1350 |
|
HVV50 |
37 |
0.7-1.3 |
7.1-5.4 |
G1-1/2 |
750 |
1500*1000*1350 |
|
HVV60 |
45 |
0.7-1.3 |
10.0-6.8 |
G2 |
1250 |
2100*1300*1650 |
|
HVV75 |
55 |
0.7-1.3 |
13.0-7.5 |
G2 |
1300 |
2100*1300*1650 |
|
HVV100 |
75 |
0.7-1.3 |
15.5-10.2 |
G2 |
1350 |
2100*1300*1650 |
|
HVV125 |
90 |
0.7-1.3 |
19.8-14.0 |
DN80 |
2700 |
2500*1650*1900 |
|
HVV150 |
110 |
0.7-1.3 |
24.0-16.0 |
DN80 |
2800 |
2500*1650*1900 |
|
HVV180 |
132 |
0.7-1.3 |
27.5-19.0 |
DN80 |
3000 |
2500*1650*1900 |
|
HVV220 |
160 |
0.7-1.3 |
33.0-22.5 |
DN80 |
4300 |
3000*1900*1950 |
|
HVV250 |
185 |
0.7-1.3 |
39.0-27.5 |
DN80 |
4400 |
3000*1900*1950 |
|
HVV270 |
200 |
0.7-1.3 |
43.5-31.5 |
DN100 |
5000 |
3600*2200*2200 |
|
HVV300 |
220 |
0.7-1.3 |
51.5-35.5 |
DN100 |
5500 |
3600*2200*2200 |
|
HVV340 |
250 |
0.7-1.3 |
54.0-38.0 |
DN125 |
6000 |
3600*2200*2200 |
|
HVV380 |
280 |
0.7-1.3 |
60.0-43.0 |
DN125 |
6800 |
4000*2300*2300 |
|
HVV420 |
315 |
0.7-1.3 |
65.0-50.5 |
DN125 |
7000 |
4000*2300*2300 |
|
HVV480 |
355 |
0.7-1.3 |
75.0-55.0 |
DN150 |
8500 |
4200*2200*2350 |
|
HVV540 |
400 |
0.7-1.3 |
84.0-61.0 |
DN150 |
9000 |
4200*2200*2350 |
Advantages
Double screw air compressor in addition to uphold twin-screw compressor has the advantages of simple structure,flexible installation and high efficiency,but also highlights the advantages of their own efficient,energy-saving:
1. can reduce the bearing load,improve volume efficiency,
2. in the case of some load operation,can improve efficlency,energy saving.
Double screw air compressor than twin-screw compressor energy saving up to 15%,each run for 8000 hours a year, Annual savings of about 200 thousand yuan electricity.
FAQ
Q: Are you manufacturer?
WOYO: Yes,we are professional air compressor manufacturer over 40 years and our factory located in Wuxi.
Q: How long is your Screw Airend warranty?
WOYO: For 2 year.
Q: Do you provide After- sales service parts?
WOYO: Of course, We could provide easy- consumable spares.
Q: How long could your Screw Airend be used?
WOYO: Generally, more than 10 years.
Q: How about your price?
WOYO: Based on high quality, Our price is very competitive in this market all over the world.
Q: How about your customer service?
WOYO: For email, we could reply our customers' emails within 2 hours.
Q: How to get quicker quotation?
WOYO: When you send us inquiry, please confirm below information at the same time:
* Power
* Color
* Air Capacity
This information is helpful for us to check suitable equipment solution and quotation quickly.
