Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Power: | 15hp |
|---|---|---|---|
| Type: | Screw | Working Pressure: | 1.6Mpa |
| Air Capacity: | 0.6M3/min | ||
| High Light: | 10hp Integrated Air Compressor,Integrated Air Compressor 1.55MPA,1.55MPA 10hp Screw Compressor |
||

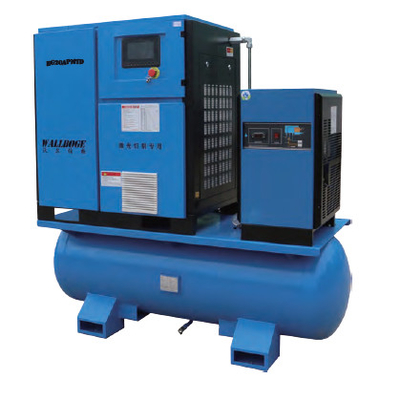

Screw compressor for Laser Cutting 10hp, 1.6MPA, 0.6M3/min
Advantages:
1. High quality control(ISO14001/CE/SGS Energy saving certificate)
2. Fast Delivery( 20-30 days for large orders)
3. Good service for pre-sale,after-sale( strong technical support and professional after-sales team)
4. Trial small order acceptable( Ordering quantity according to your actual needs)
Features:
1. Adopt high efficiency dryer and 4 high efficiency and precision filter to ensure the pure compressed air, the pressure dew point is as low as 2-8℃, adopt stainless steel pipeline after treatment to avoid secondary pollution.
2. The main oil pipe is connected with flexible pipeline, which can effectively reduce vibration and noise, and the operating noise is < 70dB. Permanent magnet frequency conversion can better control the oil temperature, avoid emulsification post-processing centralized drainage, and keep the customer site clean.
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
GD10 |
7.5 |
1.55 |
0.6 |
G1/2 |
180 |
1800*750*1400 |
|
GD15 |
11 |
1.6 |
0.9 |
G3/4 |
300 |
1800*750*1550 |
|
GD20 |
15 |
1.6 |
1.2 |
G3/4 |
320 |
1800*750*1550 |
|
GD30 |
22 |
1.6 |
2.0 |
G1 |
420 |
1800*850*1650 |
|
GD50 |
37 |
1.6 |
2.8 |
G1 1/2 |
600 |
1500*1000*1350 |
|
GD75 |
55 |
1.6 |
6.5 |
G2 |
1250 |
2100*1300*1650 |
|
GD100 |
75 |
1.6 |
9.1 |
G2 |
1300 |
2100*1300*1650 |
|
GD125 |
90 |
1.6 |
11.2 |
DN80 |
2600 |
2500*1650*1900 |
|
GD150 |
110 |
1.6 |
14.5 |
DN80 |
2700 |
2500*1650*1900 |
|
GD180 |
132 |
1.6 |
18 |
DN80 |
2950 |
2500*1650*1900 |
Company Service
1. Our Advantages Service:
We have own developing and designing team, which ensure our own technological and innoative products for customers.
For any customers who send us the samples of rotors or airend, we will design and develop better ones based on the samples.
We are manufacturer, factory, so we have the ability of mass production.
2. Technical Support:
Most of our WOYO products adopt German advanced technilogy, and the producing machine are all equipped with German and Japan.
3. After Sale Service:
Our working team will always reply you if you need any technical support and help, we can use video, whatsapp and other commication tools to help you solve the problems.
