Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Power: | 30hp |
|---|---|---|---|
| Type: | Screw | Working Pressure: | 1.6Mpa |
| Air Capacity: | 2.0M3/min | Product Name: | Integrated Air Compressor For Laser Cutting |
| High Light: | 1.6MPA Integrated Air Compressor For Laser Cutting,1.6MPA 30hp Air Compressor,1.6MPA 30 hp screw compressor |
||

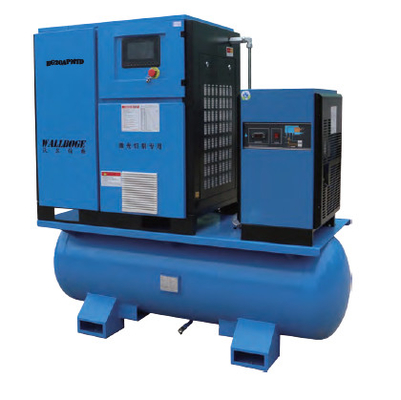

Screw compressor for Laser Cutting 30hp, 1.6MPA, 2.0M3/min
Description
1. Adopt high efficiency dryer and 4 high efficiency and precision filter to ensure the pure compressed air, the pressure dew point is as low as 2-8℃, adopt stainless steel pipeline after treatment to avoid secondary pollution.
2. The main oil pipe is connected with flexible pipeline, which can effectively reduce vibration and noise, and the operating noise is < 70dB. Permanent magnet frequency conversion can better control the oil temperature, avoid emulsification post-processing centralized drainage, and keep the customer site clean.
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
GD10 |
7.5 |
1.55 |
0.6 |
G1/2 |
180 |
1800*750*1400 |
|
GD15 |
11 |
1.6 |
0.9 |
G3/4 |
300 |
1800*750*1550 |
|
GD20 |
15 |
1.6 |
1.2 |
G3/4 |
320 |
1800*750*1550 |
|
GD30 |
22 |
1.6 |
2.0 |
G1 |
420 |
1800*850*1650 |
|
GD50 |
37 |
1.6 |
2.8 |
G1 1/2 |
600 |
1500*1000*1350 |
|
GD75 |
55 |
1.6 |
6.5 |
G2 |
1250 |
2100*1300*1650 |
|
GD100 |
75 |
1.6 |
9.1 |
G2 |
1300 |
2100*1300*1650 |
|
GD125 |
90 |
1.6 |
11.2 |
DN80 |
2600 |
2500*1650*1900 |
|
GD150 |
110 |
1.6 |
14.5 |
DN80 |
2700 |
2500*1650*1900 |
|
GD180 |
132 |
1.6 |
18 |
DN80 |
2950 |
2500*1650*1900 |
Company Service
1. Our Advantages Service:
We have own developing and designing team, which ensure our own technological and innoative products for customers.
For any customers who send us the samples of rotors or airend, we will design and develop better ones based on the samples.
We are manufacturer, factory, so we have the ability of mass production.
2. Technical Support:
Most of our WOYO products adopt German advanced technilogy, and the producing machine are all equipped with German and Japan.
3. After Sale Service:
Our working team will always reply you if you need any technical support and help, we can use video, whatsapp and other commication tools to help you solve the problems.
