Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Power: | 15hp |
|---|---|---|---|
| Type: | Screw | Working Pressure: | 1.6Mpa |
| Air Capacity: | 1.2M3/min | Product Name: | 20hp Air Compressor |
| High Light: | 20hp Integrated Air Compressor,Integrated Air Compressor 1.2M3/Min,1.6MPA 20 hp Air Compressor |
||

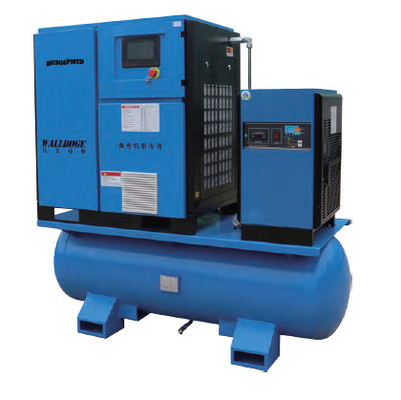

Screw Compressor For Laser Cutting 20hp 1.6MPA 1.2M3/Min
Description
1. Adopt high efficiency dryer and 4 high efficiency and precision filter to ensure the pure compressed air, the pressure dew point is as low as 2-8℃, adopt stainless steel pipeline after treatment to avoid secondary pollution.
2. The main oil pipe is connected with flexible pipeline, which can effectively reduce vibration and noise, and the operating noise is < 70dB. Permanent magnet frequency conversion can better control the oil temperature, avoid emulsification post-processing centralized drainage, and keep the customer site clean.
Specification
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
GD10 |
7.5 |
1.55 |
0.6 |
G1/2 |
180 |
1800*750*1400 |
|
GD15 |
11 |
1.6 |
0.9 |
G3/4 |
300 |
1800*750*1550 |
|
GD20 |
15 |
1.6 |
1.2 |
G3/4 |
320 |
1800*750*1550 |
|
GD30 |
22 |
1.6 |
2.0 |
G1 |
420 |
1800*850*1650 |
|
GD50 |
37 |
1.6 |
2.8 |
G1 1/2 |
600 |
1500*1000*1350 |
|
GD75 |
55 |
1.6 |
6.5 |
G2 |
1250 |
2100*1300*1650 |
|
GD100 |
75 |
1.6 |
9.1 |
G2 |
1300 |
2100*1300*1650 |
|
GD125 |
90 |
1.6 |
11.2 |
DN80 |
2600 |
2500*1650*1900 |
|
GD150 |
110 |
1.6 |
14.5 |
DN80 |
2700 |
2500*1650*1900 |
|
GD180 |
132 |
1.6 |
18 |
DN80 |
2950 |
2500*1650*1900 |
Company Information
Founded in 1996, WOYO is a High-tech enterprise with patent skills focuses on screw compressor industry. WOYO together with Wolkair Germany and GASCOT Germany formed a Joint Venture----WOYO Superdo in 2003. WOYO Superdo Achieved excellent results in research&develop of core components, Modular designing, Quality Management, Precision Machining and Large-scale production.
There is a workshop of 20000 ㎡ with KAPP and SU rotor grinding machine, Japanese horizontal machining center and coordinate measuring machine in our factory. Over 120 Employees work for us.
Our vision is creating value. Our skills and products are approved by more and more customers in light industry because we provide not only the compressors but also made-to-measure compressed air solutions to reduce the cost for customers.
We will supply more reliable and more economical compressor system and Service to our customer in global.
