Product Details:
|
| Warranty: | 2 Year For Airend, 1 Year For Spare Parts | Power: | 75hp |
|---|---|---|---|
| Type: | Screw | Working Pressure: | 1.6Mpa |
| Air Capacity: | 6.5M3/min | Product Name: | Integrated Air Compressor |
| High Light: | 55kw Integrated Air Compressor,Integrated Air Compressor 16 Bar,55kw 16 Bar Air Compressor |
||

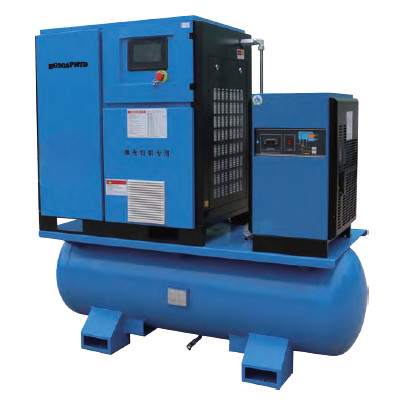

Screw compressor for Laser Cutting 75hp, 1.6MPA, 6.5M3/min
More than 40 years of experience in theory and practice of screw compact unit, the engineers of WOYO focus on special screw airends and modules of green intelligent screw air compressor R&D and manufacturing. For saving energy, reducing emission and protecting environmental,create more value for customers in three aspects. More green protection for the Earth.
Adopt high efficiency dryer and 4 high efficiency and precision filter to ensure the pure compressed air, the pressure dew point is as low as 2-8℃, adopt stainless steel pipeline after treatment to avoid secondary pollution.
The main oil pipe is connected with flexible pipeline, which can effectively reduce vibration and noise, and the operating noise is < 70dB. Permanent magnet frequency conversion can better control the oil temperature, avoid emulsification post-processing centralized drainage, and keep the customer site clean.
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
GD10 |
7.5 |
1.55 |
0.6 |
G1/2 |
180 |
1800*750*1400 |
|
GD15 |
11 |
1.6 |
0.9 |
G3/4 |
300 |
1800*750*1550 |
|
GD20 |
15 |
1.6 |
1.2 |
G3/4 |
320 |
1800*750*1550 |
|
GD30 |
22 |
1.6 |
2.0 |
G1 |
420 |
1800*850*1650 |
|
GD50 |
37 |
1.6 |
2.8 |
G1 1/2 |
600 |
1500*1000*1350 |
|
GD75 |
55 |
1.6 |
6.5 |
G2 |
1250 |
2100*1300*1650 |
|
GD100 |
75 |
1.6 |
9.1 |
G2 |
1300 |
2100*1300*1650 |
|
GD125 |
90 |
1.6 |
11.2 |
DN80 |
2600 |
2500*1650*1900 |
|
GD150 |
110 |
1.6 |
14.5 |
DN80 |
2700 |
2500*1650*1900 |
|
GD180 |
132 |
1.6 |
18 |
DN80 |
2950 |
2500*1650*1900 |
Note
If you need assistance to make sure that this part will fit your vehicle, please send us the photo of your old compressor , the VIN and/or the year, make, model and engine size of your vehicle so that we may confirm it for you. We also recommend using the compatibility chart in order to make sure that this compressor will fit your vehicle.
