Product Details:
|
| Product Name: | Air Compressor For Fiber Laser Cutting Machine | Warranty: | 2 Year For Airend, 1 Year For Spare Parts |
|---|---|---|---|
| Power: | 50hp | Type: | Screw |
| Working Pressure: | 1.6Mpa | Air Capacity: | 3.6M3/min |
| High Light: | Screw 50hp Air Compressor,50hp Air Compressor 3.6M3/Min,Screw 50hp laser cutter air compressor |
||

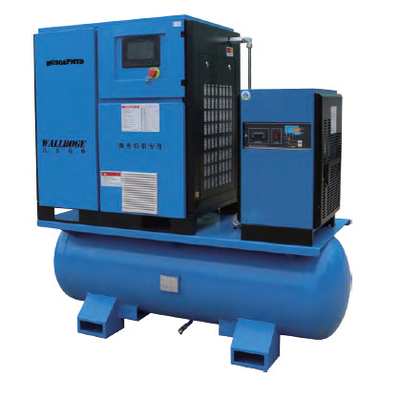

Screw compressor for Laser Cutting 50hp, 1.6MPA, 3.6M3/min
1. Professional design by our engineers originally from WOYO. Better stability and reliability with higher efficiency. Low-speed design low-noise running , longer lifespan.
2. Adopt high efficiency dryer and 4 high efficiency and precision filter to ensure the pure compressed air, the pressure dew point is as low as 2-8℃, adopt stainless steel pipeline after treatment to avoid secondary pollution.
3. The main oil pipe is connected with flexible pipeline, which can effectively reduce vibration and noise, and the operating noise is < 70dB. Permanent magnet frequency conversion can better control the oil temperature, avoid emulsification post-processing centralized drainage, and keep the customer site clean.
|
Model |
Power(KW) |
Pressure(MPa) |
Capacity(m3/min) |
Pipe Diameter |
Weight (kg) |
Dimension(mm) |
|
GD10 |
7.5 |
1.55 |
0.6 |
G1/2 |
180 |
1800*750*1400 |
|
GD15 |
11 |
1.6 |
0.9 |
G3/4 |
300 |
1800*750*1550 |
|
GD20 |
15 |
1.6 |
1.2 |
G3/4 |
320 |
1800*750*1550 |
|
GD30 |
22 |
1.6 |
2.0 |
G1 |
420 |
1800*850*1650 |
|
GD50 |
37 |
1.6 |
2.8 |
G1 1/2 |
600 |
1500*1000*1350 |
|
GD75 |
55 |
1.6 |
6.5 |
G2 |
1250 |
2100*1300*1650 |
|
GD100 |
75 |
1.6 |
9.1 |
G2 |
1300 |
2100*1300*1650 |
|
GD125 |
90 |
1.6 |
11.2 |
DN80 |
2600 |
2500*1650*1900 |
|
GD150 |
110 |
1.6 |
14.5 |
DN80 |
2700 |
2500*1650*1900 |
|
GD180 |
132 |
1.6 |
18 |
DN80 |
2950 |
2500*1650*1900 |
FAQ
Q: Are you manufacturer?
WOYO: Yes,we are professional air compressor manufacturer over 40 years and our factory located in Wuxi.
Q: How long is your Screw Airend warranty?
WOYO: For 2 year.
Q: Do you provide After- sales service parts?
WOYO: Of course, We could provide easy- consumable spares.
Q: How long could your Screw Airend be used?
WOYO: Generally, more than 10 years.
Q: How about your price?
WOYO: Based on high quality, Our price is very competitive in this market all over the world.
Q: How about your customer service?
WOYO: For email, we could reply our customers' emails within 2 hours.
Q: How to get quicker quotation?
WOYO: When you send us inquiry, please confirm below information at the same time:
* Power
* Color
* Air Capacity
This information is helpful for us to check suitable equipment solution and quotation quickly.
